Analog Devices Inc. LTC3309AIV#TRMPBF Overview

The LTC3309AIV#TRMPBF is a high-performance, synchronous step-down switching regulator from Analog Devices Inc., a leader in the design and manufacturing of analog, mixed-signal, and DSP integrated circuits. This advanced regulator is designed to provide efficient power management solutions for a wide range of applications, including portable devices, industrial systems, and automotive electronics.

Key Features

• High Efficiency: The LTC3309AIV#TRMPBF features a synchronous rectification architecture which significantly improves efficiency, especially at low output voltages.
• Wide Input Voltage Range: It operates from a wide input voltage range of 2.25V to 5.5V, making it suitable for single-cell Li-Ion applications as well as 3.3V or 5V intermediate bus systems.
• Adjustable Output Voltage: The output voltage can be programmed between 0.6V to the input voltage, allowing for great flexibility to power various loads.

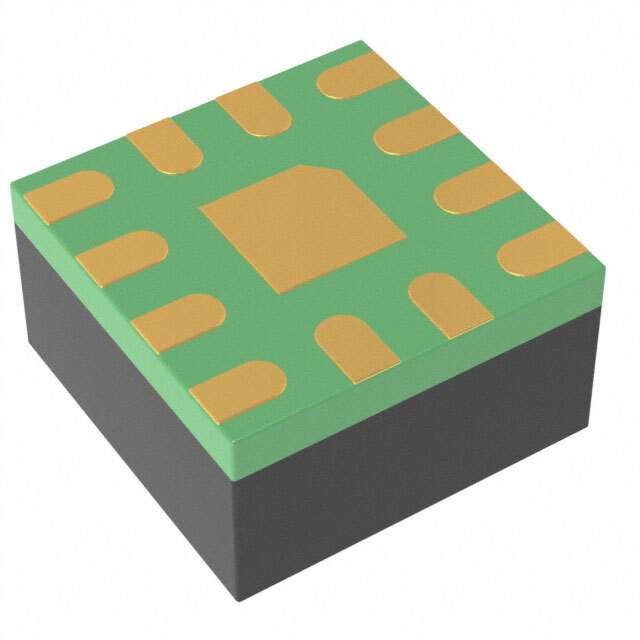

• Compact Design: The LTC3309AIV#TRMPBF is available in a compact 3mm x 3mm QFN package, which is ideal for space-constrained applications.
• Low Ripple Burst Mode® Operation: It features Analog Devices' proprietary Burst Mode operation, which maintains high efficiency at low output currents while keeping the output ripple to a minimum.
• Thermal Protection: The device includes thermal shutdown protection to safeguard the IC under extreme thermal conditions.

Applications

The LTC3309AIV#TRMPBF is versatile and can be used in a variety of applications. Its high efficiency and low quiescent current make it ideal for battery-powered devices, while its robust design ensures reliable performance in automotive and industrial environments. Typical applications include:

• Portable Electronics
• Automotive Power Systems
• Industrial Power Supplies
• Distributed Power Systems
• Point-of-Load Applications

Conclusion

With its high efficiency, wide input voltage range, and adjustable output voltage, the LTC3309AIV#TRMPBF from Analog Devices Inc. is a versatile power management solution that meets the needs of modern electronic devices. Its small footprint and feature-rich design make it an excellent choice for designers looking to optimize power consumption and maximize battery life in their products.
