LTM8074IY#PBF

Part No LTM8074IY#PBF
Manufacturer Analog Devices Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG BUCK ADJ 1.2A 25BGA / Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 12V 1.2A 3.2V - 40V Input
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Analog Devices Inc.
Series µModule®
Package Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 3.2V
Voltage - Input (Max) 40V
Voltage - Output 1 0.8 ~ 12V
Current - Output (Max) 1.2A
Applications ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount

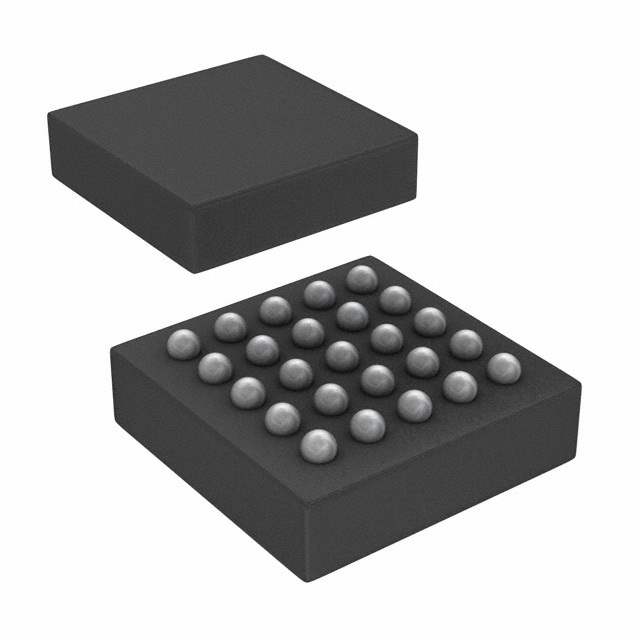

Package / Case 25-FBGA
Size / Dimension 0.16" L x 0.16" W x 0.07" H (4.0mm x 4.0mm x 1.82mm)
Supplier Device Package 25-BGA (4x4)
Base Product Number LTM8074
Standard Package 540
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1339018-LTM8074IY#PBF
Ultra Librarian 3D Model Ultra Librarian LTM8074IY#PBF CAD Model

Description

The LTM8074IY#PBF is a high-performance, micro-module step-down regulator from Analog Devices Inc., a leader in the field of high-performance analog technology. This compact and efficient power management solution is designed to simplify the design process and accelerate time-to-market for a wide range of applications.

Key Features

  • Wide Input Voltage Range: The LTM8074IY#PBF operates with an input voltage range from 3.4V to 40V, making it suitable for a variety of supply voltages.
  • Adjustable Output Voltage: It offers an adjustable output voltage from 0.97V to 18V, providing versatility for different circuit requirements.
  • High Efficiency: With an efficiency of up to 92%, this micro-module regulator ensures minimal heat generation and energy loss during operation.
  • Compact Design: The device comes in a compact, surface-mount LGA package, allowing for space-saving integration into a wide array of electronic systems.
  • Integrated Components: It includes a switching controller, power switches, inductor, and all support components, simplifying the design and reducing external component count.
  • Robust Temperature Performance: The LTM8074IY#PBF operates over a temperature range from -40°C to +125°C, making it reliable for use in harsh environments.

Applications

The versatility and robustness of the LTM8074IY#PBF make it ideal for a broad range of applications, including:

  • Telecommunications
  • Industrial Equipment
  • Automotive Systems
  • Datacom Infrastructure
  • Medical Devices
  • Portable Electronics

Quality and Reliability

Analog Devices Inc. is committed to providing high-quality products, and the LTM8074IY#PBF is no exception. It is designed to meet stringent industry standards for reliability and performance, ensuring long-term stability and operation for critical applications.

Ordering Information

The product is available with the part number LTM8074IY#PBF. For detailed specifications, technical documents, and ordering information, please visit the Analog Devices Inc. website or contact their sales and support team.
