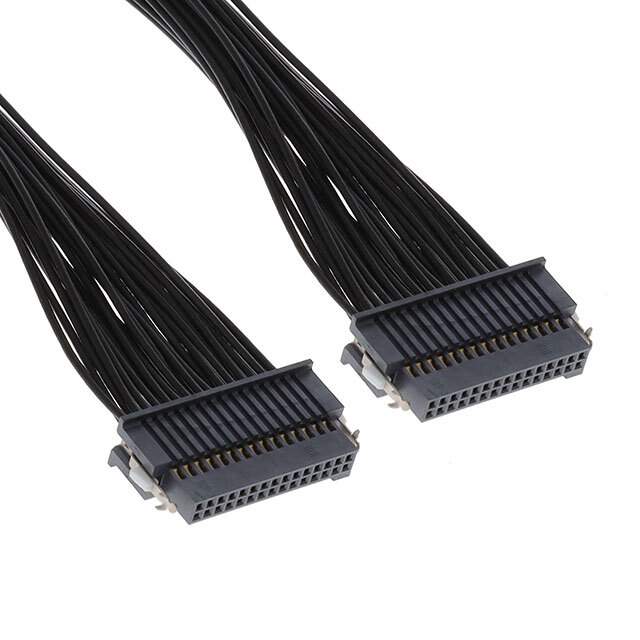

SFSD-15-28-H-14.00-DR-NDX Real Image
Same model may have multiple batches, images only for reference.

SFSD-15-28-H-14.00-DR-NDX

Part No SFSD-15-28-H-14.00-DR-NDX
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Datasheet
SFSD-15-28-H-14.00-DR-NDX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series Tiger Eye™ SFSD
Package Bulk
Connector Type Socket to Socket
Number of Positions 30
Number of Rows 2
Pitch - Connector 0.050" (1.27mm)
Length 1.17' (355.60mm)
Features Latch Lock, Polarizing Key
Color Black, Individual
Shielding Unshielded
Cable Termination Crimp
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number SFSD-15
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8544.42.9090
Win Source Part Number 1310331-SFSD-15-28-H-14.00-DR-NDX
Ultra Librarian 3D Model Ultra Librarian SFSD-15-28-H-14.00-DR-NDX CAD Model

Description

The Samtec Inc. Tiger Eye™ SFSD-15-28-H-14.00-DR-NDX is a rectangular cable assembly with a socket to socket connector type and 30 number of positions.

  • Length: 1.17' (355.60mm)
  • Pitch - Connector: 0.050" (1.27mm)
  • Features: Latch lock and polarizing key
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Shielding: Unshielded
  • Cable Termination: Crimp
