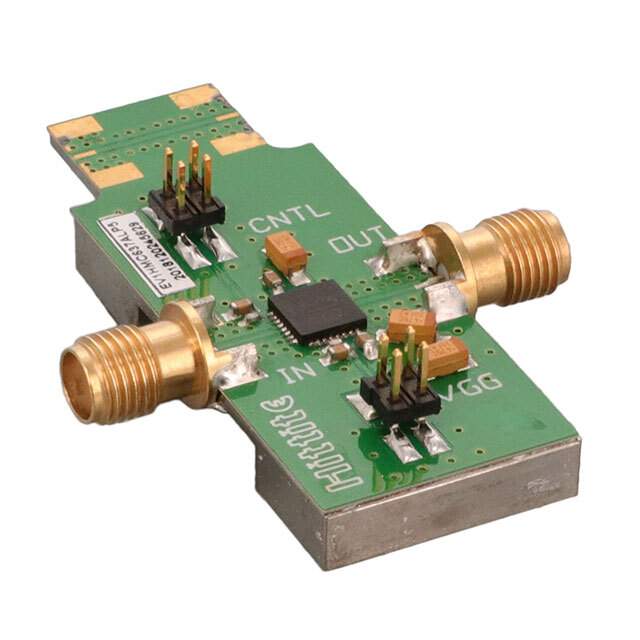

The EV1HMC637ALP5 from Analog Devices Inc. is a high-performance, easy-to-use evaluation board designed for the HMC637ALP5 amplifier. This evaluation board is an essential tool for engineers and designers looking to test or integrate this amplifier into their RF and microwave applications. The HMC637ALP5 is a GaAs pHEMT MMIC (Monolithic Microwave Integrated Circuit) amplifier that operates in a frequency range from 0.5 GHz to 18 GHz.

This amplifier is well-suited for a wide array of applications, including electronic warfare, test instrumentation, fiber optics, and broadband telecom equipment due to its broad frequency range and high linearity. It provides excellent gain and output power with a typical gain of 11 dB and +27 dBm output IP3, making it an ideal choice for high dynamic range receivers and complex signal chains.

Key Features:

• Frequency Range: 0.5 GHz to 18 GHz, catering to a broad spectrum of RF and microwave applications.
• High Gain: Typical gain of 11 dB, providing sufficient amplification for a variety of signal processing tasks.
• Output Third-Order Intercept (IP3): +27 dBm, indicating strong linearity and the ability to handle high power levels without significant distortion.
• Power Supply: Single positive supply voltage for ease of use and integration into existing systems.
• Lead-Free and RoHS Compliant: Meets current environmental regulations for electronic components.
• Compact Size: The HMC637ALP5 comes in a 5x5 mm surface mount package, making it suitable for space-constrained applications.

The EV1HMC637ALP5 evaluation board is designed with the end-user in mind, featuring a straightforward layout that allows for immediate testing and prototyping. The board includes all necessary components and matching networks to ensure optimal performance of the HMC637ALP5 amplifier. With its robust construction and high-quality design, the EV1HMC637ALP5 is an indispensable asset for developing cutting-edge RF solutions.
