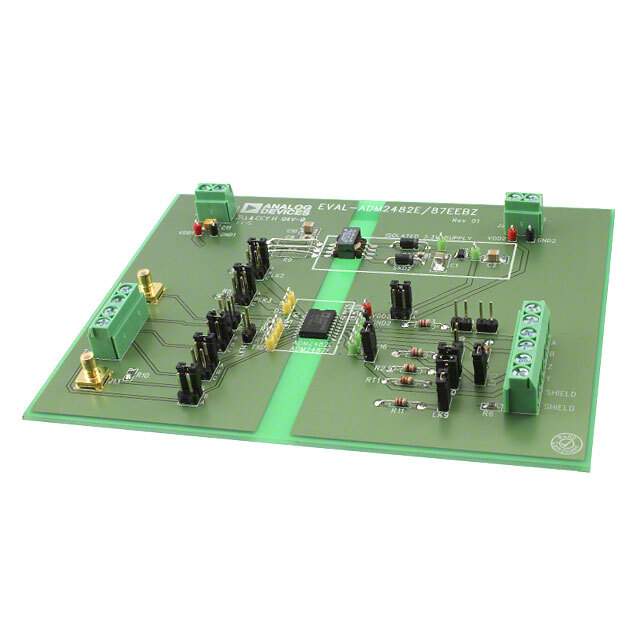

EVAL-ADM2482EEB5Z Evaluation Board from Analog Devices Inc.

The EVAL-ADM2482EEB5Z is a high-performance evaluation board designed by Analog Devices Inc. to showcase the capabilities of the ADM2482E, a robust, high-speed, half-duplex iCoupler® isolated RS-485 transceiver. This evaluation board provides engineers with a convenient platform for testing and prototyping, ensuring a seamless design experience when integrating the ADM2482E into various industrial and communication applications.

Key Features of the EVAL-ADM2482EEB5Z

• Integrated Isolation: The ADM2482E transceiver on the board features Analog Devices' proprietary iCoupler technology, providing 2.5 kV RMS signal isolation, which is critical for protecting sensitive electronic components in harsh industrial environments.
• RS-485/RS-422 Compatibility: Designed to operate in half-duplex RS-485 and RS-422 communication networks, the board supports data rates up to 16 Mbps, making it suitable for high-speed data transmission requirements.
• Thermal Shutdown Protection: The device includes a thermal shutdown feature that protects the transceiver from overheating, ensuring reliable operation under various conditions.
• Fail-Safe Receiver Inputs: The ADM2482E ensures a logic high receiver output when the inputs are shorted or open, or when they are connected to a terminated transmission line with all drivers disabled, enhancing communication reliability.
• Easy to Use: The evaluation board comes with convenient edge-mounted SMA connectors for quick connection to other test equipment. It also includes test points and jumpers for easy mode configuration and signal probing.
• Power Supply Flexibility: The board can be powered through the USB port or with an external power supply, giving users flexibility in their testing setup.

The EVAL-ADM2482EEB5Z evaluation board is an essential tool for engineers looking to rapidly prototype and test systems that require isolated data communication. With its robust feature set and flexible design, it is ideally suited for applications in industrial automation, instrumentation, and any other systems where reliable data transmission is a must. Whether you are developing a new product or simply evaluating the performance of the ADM2482E transceiver, this evaluation board from Analog Devices Inc. is an excellent resource to accelerate your design process.

For more information and detailed specifications, please refer to the official documentation and user guides provided by Analog Devices.
