EVAL-LTC6228IS8 Product Overview

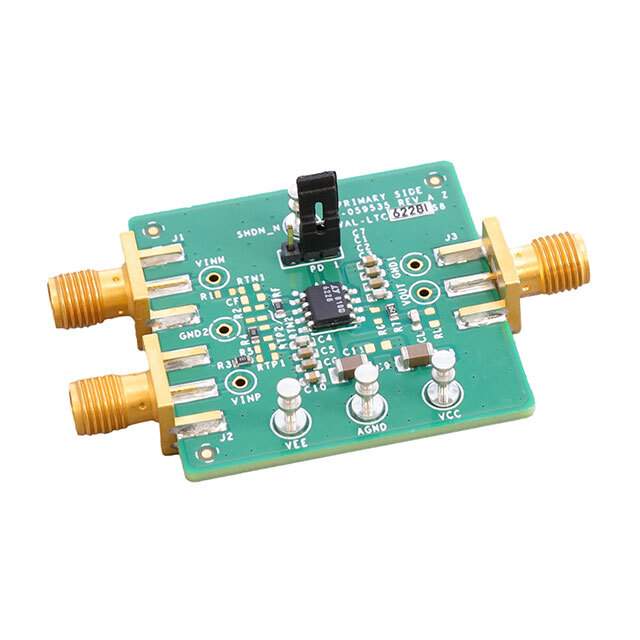

The EVAL-LTC6228IS8 is a high-speed operational amplifier evaluation board from Analog Devices Inc., designed to showcase the capabilities of the LTC6228 amplifier in an 8-lead SO package. The LTC6228 is a rail-to-rail output, high-speed op-amp with an impressive slew rate and gain bandwidth product, making it an ideal choice for a wide range of applications including A/D driver and high-speed signal processing.

Key Features

• High-Speed Performance: The LTC6228 offers a high slew rate of 500 V/µs and a gain bandwidth product of 890MHz, providing the speed necessary for high-frequency signal amplification.
• Rail-to-Rail Output: This feature allows the output to swing within a few millivolts of the supply rails, maximizing the dynamic range in single or split supply operations.
• Low Distortion: The LTC6228 provides low harmonic distortion, which is critical for precision signal processing and data acquisition systems.
• Single-Supply Operation: With a supply range from 2.5 V to 5.25 V, the device can be used in single-supply systems, simplifying power supply design.
• Robust Design: The EVAL-LTC6228IS8 is built to handle a wide temperature range, ensuring reliable performance under varying environmental conditions.

Applications

The versatility of the LTC6228 makes it suitable for a variety of applications, including:

• High-speed data acquisition
• Driving analog-to-digital converters (ADCs)
• Video and cable drivers
• Signal conditioning
• Active filters
• Buffer amplifiers

Easy Evaluation

The EVAL-LTC6228IS8 evaluation board is designed for ease of use, allowing designers to quickly assess the LTC6228's features and performance. The board comes with all necessary components for immediate use and includes various test points for convenient connection to measurement equipment. With the EVAL-LTC6228IS8, engineers can expedite their development process and reduce time-to-market for their high-speed applications.
