The HMC252QS24ETR is a high-performance, non-reflective Single Pole Six Throw (SP6T) switch designed by Analog Devices Inc., a leader in the semiconductor industry. This switch is a part of the Hittite Microwave product line which is known for its high-quality RF and microwave devices. The HMC252QS24ETR is suitable for a wide range of applications including wireless infrastructure, test equipment, and military systems.

Key Features

• Frequency Range: The HMC252QS24ETR operates across a broad frequency range from DC to 3 GHz, making it versatile for various RF applications.
• High Isolation: It offers high isolation between channels, typically greater than 40 dB, which minimizes crosstalk and ensures signal integrity.
• Low Insertion Loss: With an insertion loss of typically less than 1.5 dB at 2 GHz, it maintains signal strength and quality throughout the switching process.
• Non-Reflective Design: The non-reflective nature of the switch enhances the performance in RF signal routing applications by reducing signal reflections that can degrade system performance.
• Single Supply Voltage: It operates with a single positive control voltage from +3 to +5 V, simplifying power supply requirements.
• Fast Switching Speed: The device boasts a fast switching speed, typically 60 ns, allowing for quick transitions between channels.

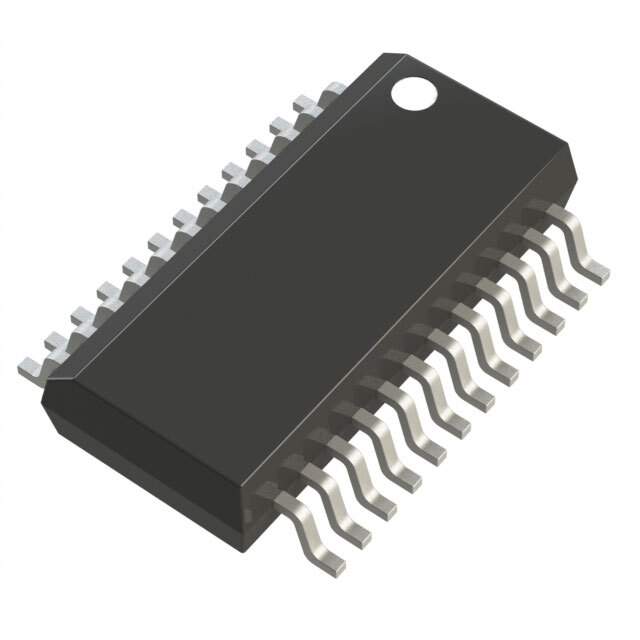

• IC Package: Housed in a compact 24-lead QSOP surface-mount package, the HMC252QS24ETR is designed for space-constrained applications.

Applications

The HMC252QS24ETR is ideal for various RF and microwave applications, including but not limited to:

• Cellular/PCS/3G infrastructure
• Automated test equipment (ATE)
• Base stations and repeaters
• Military radios, ECM, and radar systems
• Satellite communications systems

Reliability and Quality

Analog Devices Inc. is known for its commitment to quality and reliability. The HMC252QS24ETR is manufactured to meet the highest industry standards, ensuring consistent performance and durability for critical applications. Its robust design and high-quality materials make it a reliable choice for engineers and designers looking for a dependable RF switching solution.
