Product Overview: HMC536MS8GE - Analog Devices Inc.

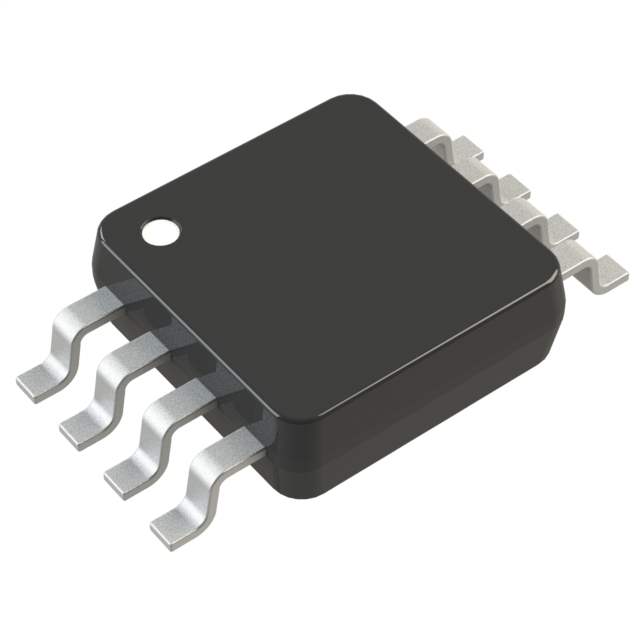

The HMC536MS8GE is a high-performance, GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO (Voltage-Controlled Oscillator) designed by Analog Devices Inc., a leader in high-performance semiconductors. This VCO integrates resonators, negative resistance devices, varactor diodes, and features a buffered output stage in a compact MSOP8G package.

Operating within the frequency range of 2.535 GHz to 2.655 GHz, the HMC536MS8GE offers excellent phase noise performance of -107 dBc/Hz at 100 kHz offset, making it ideally suited for applications requiring high signal purity. With a wide tuning voltage range of 0 to 20 V, this VCO provides designers with flexibility in frequency control for their systems.

The device is powered by a single 5V supply and consumes a typical 29 mA, which is relatively low for its performance class. The output power is also commendable at 5 dBm, ensuring a robust signal for further processing. The HMC536MS8GE's MSOP8G package is surface-mountable and compatible with standard manufacturing processes, facilitating easy integration into a wide range of electronic systems.

Applications for the HMC536MS8GE are diverse and include use in Point-to-Point and Point-to-Multipoint Radios, VSAT, Military & Space, as well as Test Instrumentation. Its high level of integration and performance make it a valuable component in PLL (Phase-Locked Loop) synthesizer designs and other systems where stable and precise frequency generation is critical.

In summary, the HMC536MS8GE from Analog Devices Inc. is a highly integrated, efficient, and reliable VCO solution for designers looking to achieve superior phase noise characteristics in their RF and microwave applications. Its ease of use, combined with outstanding performance, makes it an excellent choice for advanced communication systems and signal generation requirements.

For more detailed specifications and application guidance, designers are encouraged to consult the comprehensive datasheet and technical resources available from Analog Devices Inc.
