Product Overview: HMC540LP3ETR by Analog Devices Inc.

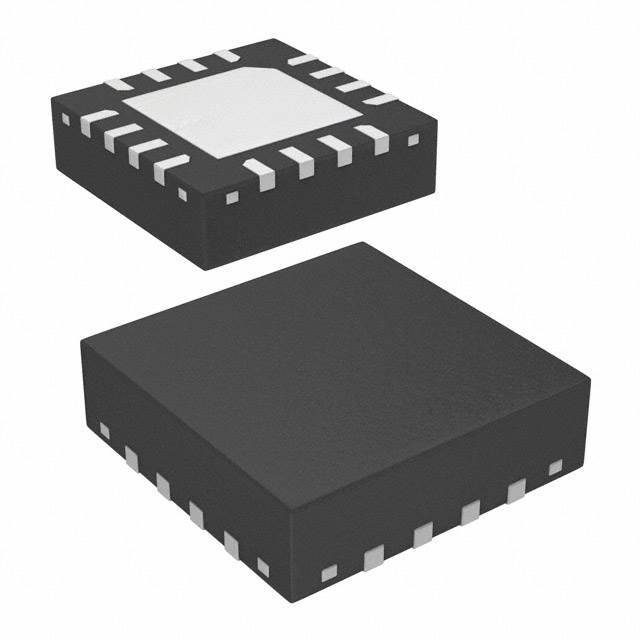

The HMC540LP3ETR is a high-performance, GaAs MMIC SPDT (Single Pole Double Throw) switch that comes in a compact 3x3 mm QFN leadless package. Manufactured by Analog Devices Inc., a leader in the semiconductor industry, this switch is designed for a wide range of RF applications, including but not limited to, cellular infrastructure, test equipment, and satellite communications.

Key Features:

• Frequency Range: The HMC540LP3ETR operates over a broad frequency range from DC to 40 GHz, making it highly versatile for various applications across different frequency bands.
• High Isolation: It offers high isolation between ports, typically 45 dB at 15 GHz, which minimizes signal leakage and preserves signal integrity.
• Low Insertion Loss: The switch has a low insertion loss of 2.5 dB at 15 GHz, ensuring minimal signal attenuation during the switching process.
• Non-Reflective Design: A non-reflective design with 50 Ohm matched ports reduces signal reflections and standing waves, which is crucial for maintaining the quality of high-speed signals.
• Fast Switching Speed: Fast switching speed of 12 ns enables quick transitions between ports, which is essential for time-sensitive applications.
• Positive Control Voltage: The switch operates with a single positive control voltage ranging from 0 to +8V, simplifying the control interface and power supply requirements.
• RoHS Compliant: The HMC540LP3ETR is fully RoHS compliant, adhering to environmental standards and regulations.

Applications:

The versatility of the HMC540LP3ETR makes it suitable for a variety of applications. It can be used in:

• RF/Microwave radios and VSATs
• Test instrumentation and sensors
• Military and space
• Fiber optic applications
• Wireless infrastructure

With its robust design and superior performance, the HMC540LP3ETR from Analog Devices Inc. is an excellent choice for designers looking to integrate a reliable SPDT switch into their RF systems. The device's specifications and capabilities ensure it meets the stringent requirements of modern communication and test equipment.
