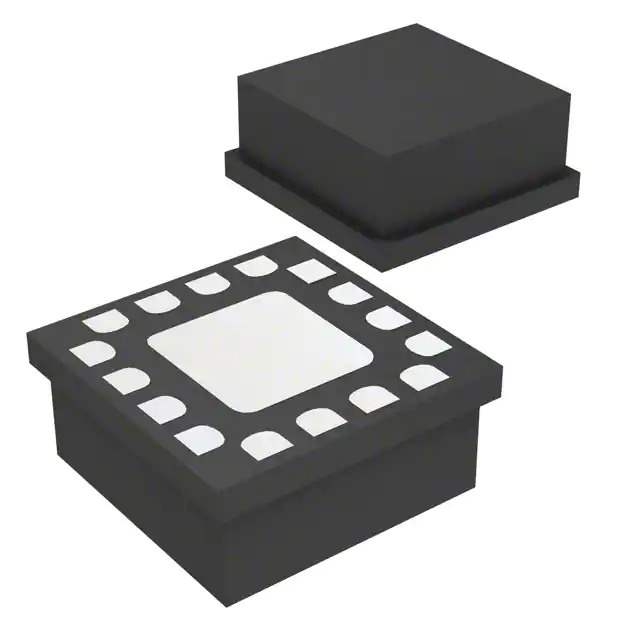

Manufactured by Analog Devices Inc., the HMC747LC3C is a high-performance, flip-chip, Silicon-Germanium (SiGe) Monolithic Microwave Integrated Circuit (MMIC) designed to meet the demanding requirements of modern digital and mixed-signal applications. This versatile component is well-suited for a wide range of applications, including but not limited to, point-to-point radios, military and space, fiber optics, and broadband test and measurement equipment.

Key Features

• Frequency Range: The HMC747LC3C operates over a broad frequency range, making it an ideal choice for various high-frequency applications.
• High Gain: It provides a high gain which is essential for signal amplification in communication systems.
• Low Noise Figure: The low noise figure of the HMC747LC3C ensures excellent signal integrity, which is critical for high-performance systems.
• Output Power: The device delivers sufficient output power, contributing to robust signal transmission over long distances.
• Package: The flip-chip packaging allows for a compact design and efficient heat dissipation, which is vital for maintaining performance and reliability.

Applications

The HMC747LC3C is designed for high-frequency applications where performance and reliability are paramount. Its versatility makes it suitable for a variety of markets and applications, including:

• Point-to-Point and Point-to-Multipoint Radios
• Military Radar and Communication Systems
• Space-bound Communication Equipment
• Fiber Optic and Broadband Infrastructure
• Test and Measurement Instruments

Technical Specifications

For precise specifications and performance data, it is recommended to consult the detailed datasheet provided by Analog Devices Inc. This will ensure that the HMC747LC3C can be integrated effectively into your system design to meet your specific requirements.
