Product Overview: LT8641IUDC#TRPBF

The LT8641IUDC#TRPBF is a high-performance, synchronous step-down switching regulator from Analog Devices Inc., which stands out for its efficiency, precision, and robustness in a variety of applications. This component is designed to be a part of critical power supply solutions where space is at a premium and power efficiency is a top priority.

Key Features

• High Efficiency: With a 2.5V to 18V input voltage range, the LT8641IUDC#TRPBF is capable of delivering up to 3.5A of continuous output current to voltages as low as 0.97V. Its high efficiency is due to its low quiescent current and the use of a synchronous rectification topology.
• Ultralow Quiescent Current: The device features an ultralow quiescent current Burst Mode operation, which maintains high efficiency at very low output currents, making it suitable for battery-powered systems.
• Fast Minimum On-Time: With its fast minimum on-time of just 30ns, this regulator can provide large step-down ratios, which is especially beneficial for high-frequency operation that enables the use of small inductors and capacitors, thus reducing the overall solution footprint.
• Robust Operation: The LT8641IUDC#TRPBF includes features such as internal top and bottom high-efficiency power switches, a fixed frequency programmable from 200kHz to 3MHz, and thermal protection. It is also capable of safe operation in adverse conditions thanks to its overvoltage, overcurrent, and overtemperature protection features.
• Silent Switcher Architecture: The device's Silent Switcher architecture minimizes EMI emissions, making it easier to meet stringent electromagnetic compatibility (EMC) standards.

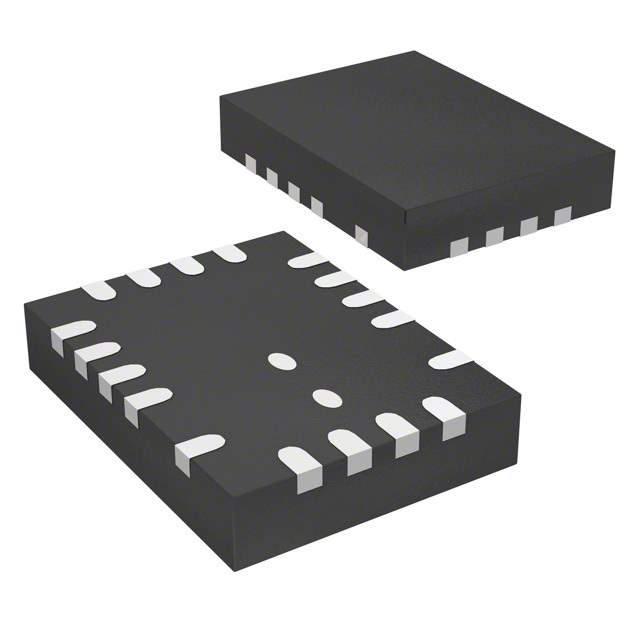

• Compact Package: Housed in a compact (3mm x 5mm) QFN package, the LT8641IUDC#TRPBF is ideal for space-constrained applications.

Applications

The LT8641IUDC#TRPBF is versatile and can be used in a variety of applications, including automotive, industrial, and telecommunications systems, as well as portable electronics that require efficient power management. Its ability to maintain high efficiency across a wide range of load conditions makes it particularly well-suited for always-on and standby power systems.

Conclusion

In summary, the LT8641IUDC#TRPBF from Analog Devices Inc. is a sophisticated power management solution that offers a blend of efficiency, compact size, and advanced features, making it an excellent choice for designers looking to optimize their power supply systems in terms of both performance and space.
