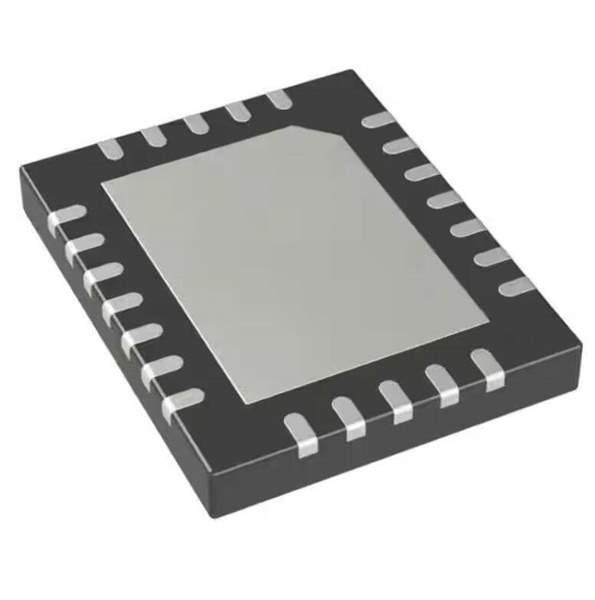

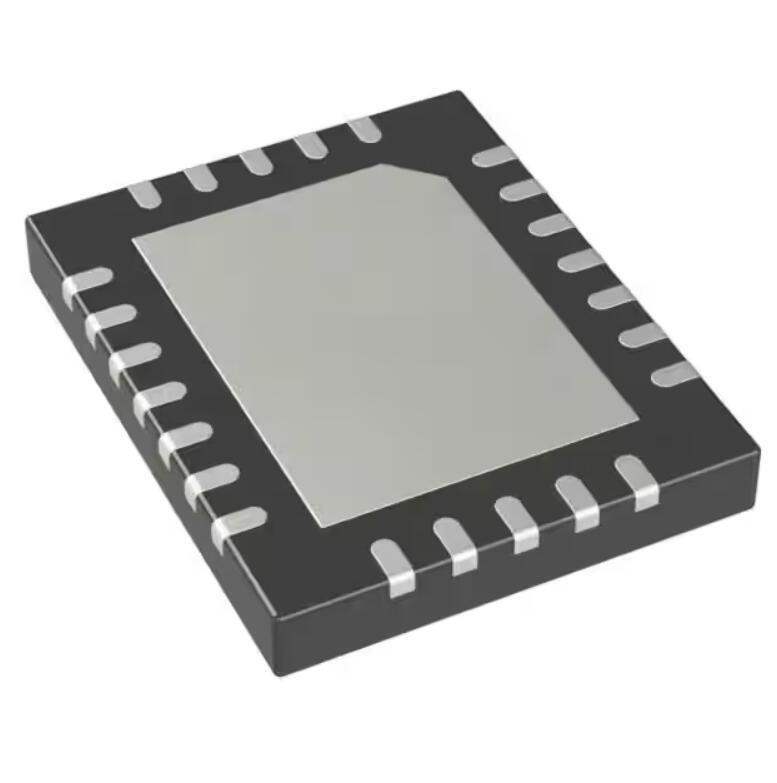

Product Overview: LTC3569EUDC#TRPBF from Analog Devices Inc.

The LTC3569EUDC#TRPBF is a high-performance, triple-channel, synchronous buck regulator designed by Analog Devices Inc. This advanced power management integrated circuit (PMIC) is engineered to provide efficient power conversion for a variety of applications, including portable devices, industrial equipment, and telecommunications infrastructure.

With its compact QFN-20 package, the LTC3569EUDC#TRPBF offers a space-saving solution for systems where board real estate is at a premium. The device integrates three independent step-down regulators with internal switches, enabling it to deliver high efficiency across a wide range of output currents. Each channel is capable of supplying up to 1A of continuous output current, making it suitable for powering multiple loads simultaneously.

The LTC3569EUDC#TRPBF operates over an input voltage range of 2.5V to 5.5V, which accommodates a variety of power sources, including single-cell lithium-ion batteries. The output voltage is adjustable from 0.6V to VIN, allowing for precise regulation tailored to the needs of the load. Its high switching frequency, up to 2.25MHz, enables the use of small surface-mount inductors and capacitors, further reducing the solution size and improving transient response.

Featuring a selectable Burst Mode® operation, the LTC3569EUDC#TRPBF maintains high efficiency at low output currents, making it ideal for battery-powered applications where extending runtime is crucial. Additionally, it has a low quiescent current, which minimizes power draw when the device is in standby mode.

The LTC3569EUDC#TRPBF includes various protection features to ensure reliable operation under adverse conditions. These include over-temperature protection, over-current protection, and short-circuit protection. The device also provides a power good status output for each channel, which can be used for power sequencing or as a diagnostic tool to ensure proper operation.

In summary, the LTC3569EUDC#TRPBF from Analog Devices Inc. is a versatile and efficient solution for managing power in compact, multi-rail systems. Its combination of high efficiency, small form factor, and robust protection features make it an excellent choice for designers looking to optimize power delivery in their next-generation electronic products.
