The LTM2881HV-3#PBF is a high-performance isolated μModule transceiver from Analog Devices Inc. that provides a complete isolated RS485/RS422 communication interface for data transmission in harsh and demanding applications. This robust component is designed to improve the reliability and quality of communication by providing galvanic isolation between the data interface and the local ground, thus reducing the risk of damage from ground loops, surges, and noise spikes.

Key Features

• Integrated Isolation: The LTM2881HV-3#PBF features onboard isolation technology, providing 2500Vrms of isolation for 1 minute between the input and output sides, enhancing system safety and signal integrity.
• High Voltage Operation: With an extended operating range, this device is suitable for high voltage applications up to 100V.
• Robust Communication: The transceiver supports RS485 and RS422 communication standards, ensuring compatibility with a wide range of industrial control and networking equipment.
• Adjustable Data Rate: It allows for a configurable data rate, supporting up to 20Mbps, making it suitable for both high-speed and precision-controlled communication tasks.
• Power Supply Flexibility: The module operates from a single 3.3V or 5V supply, making it versatile for different power environments.
• Integrated Protection: It includes features such as integrated switchable termination, fail-safe high impedance receiver input on open, shorted, or terminated lines, and thermal shutdown, ensuring reliable operation under adverse conditions.

Applications

The LTM2881HV-3#PBF is ideal for use in a variety of applications where isolation is critical, such as:

• Industrial field buses
• Test equipment
• Medical equipment with patient contact
• Ground loop elimination
• Noise-immune data communications

Quality and Reliability

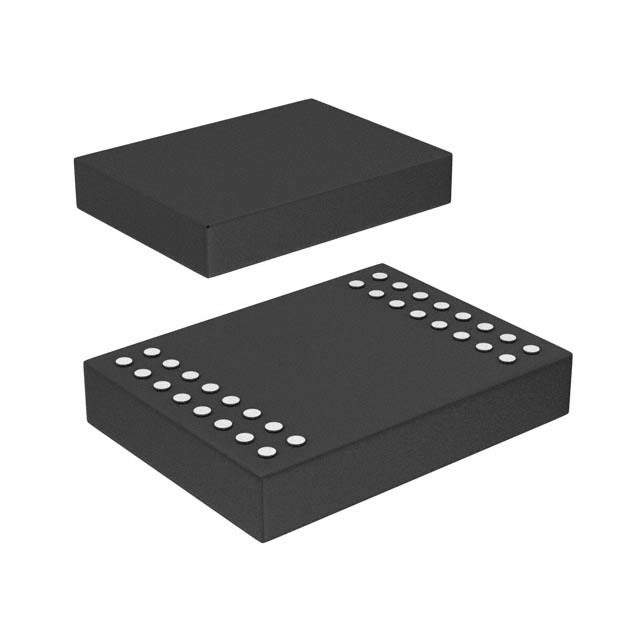

Analog Devices Inc. is known for its commitment to quality, and the LTM2881HV-3#PBF is no exception. It is manufactured to the highest standards to ensure reliable performance in the field. The component is provided in a compact, surface-mount package that is RoHS compliant and suitable for automated assembly processes, making it a convenient choice for mass production.
