Analog Devices Inc. LTM8055MPY#PBF Power Module

The LTM8055MPY#PBF is a high-efficiency, versatile power module from Analog Devices Inc., designed to simplify the process of power supply design. This innovative module is a complete system-in-a-package (SiP) that includes a switching regulator, inductor, and all support components in a compact package. It is part of the µModule (micromodule) series, which is well-regarded for its high performance and ease of use.

This step-down power module is capable of delivering up to 15A of continuous output current at voltages ranging from 0.97V to 32V, with an input voltage range of 3.6V to 58V. Such a wide input range makes the LTM8055MPY#PBF suitable for a variety of applications, including industrial, automotive, and communication systems where varying input voltages are common.

Notably, the LTM8055MPY#PBF features high-efficiency performance and a silent switcher architecture, which reduces EMI emissions, making it ideal for noise-sensitive applications. The module also comes with built-in protection features such as overvoltage, overcurrent, and overtemperature protections, ensuring the reliability and longevity of both the power module and the system it powers.

For designers seeking flexibility, the LTM8055MPY#PBF offers adjustable switching frequencies up to 2MHz and a sync input for synchronization to an external clock. This allows for optimization of efficiency and component size based on specific application requirements.

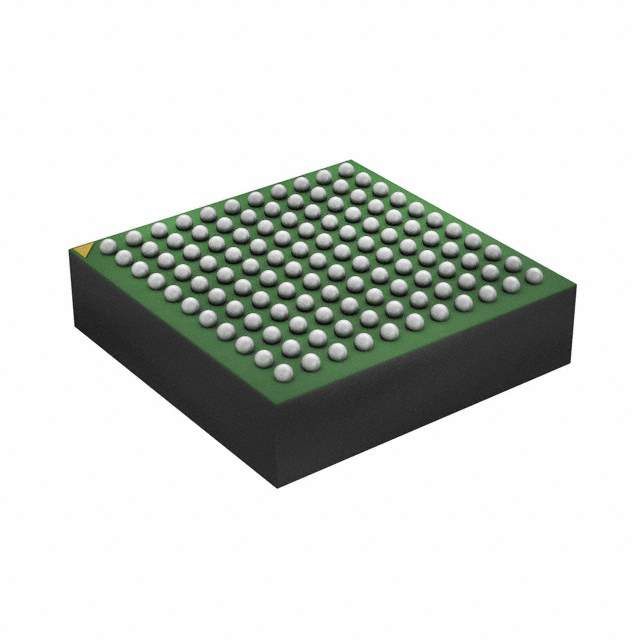

The robust design of the LTM8055MPY#PBF is encapsulated in a thermally enhanced, over-molded Land Grid Array (LGA) package, which ensures excellent thermal performance and durability. This package is suitable for harsh environments and is tested to meet the MP grade temperature range of -55°C to +125°C, making it a reliable choice for demanding applications.

In summary, the LTM8055MPY#PBF from Analog Devices Inc. is a powerful, efficient, and easy-to-use power module solution that streamlines power supply design for a wide array of applications. Its compact size, integrated components, and advanced features make it an excellent choice for designers looking to reduce development time while maintaining high performance and reliability.
