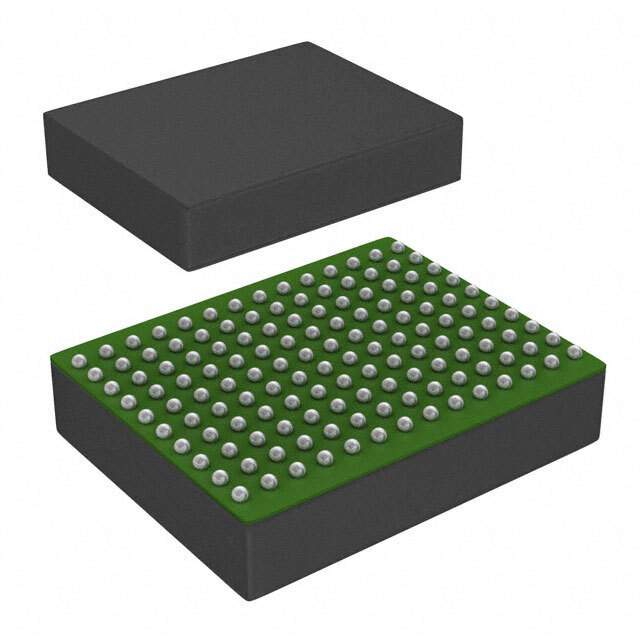

The LTM9006IY-14#PBF is a high-performance, mixed-signal front-end module from Analog Devices Inc., designed for communication systems requiring a high degree of signal integrity and processing performance. As a member of Analog Devices' µModule® (micro-module) family, this product integrates multiple functions into a compact, single package, simplifying design and reducing time to market for complex applications.

Key Features

• Integrated Solution: The LTM9006IY-14#PBF combines an ADC, passive components, and signal conditioning circuitry into a single module, streamlining the design process for RF and IF signal chains.
• High Performance: With a 14-bit, 125Msps ADC, this module provides precise digital outputs, ensuring accurate signal conversion for demanding applications.
• Wide Input Range: The device is capable of handling a broad range of input frequencies, making it versatile for various communication protocols and signal processing requirements.
• Robust Design: The module is built to operate reliably in industrial temperature ranges, ensuring consistent performance in challenging environments.
• Easy Integration: The LTM9006IY-14#PBF's small footprint and compatibility with standard digital interfaces facilitate easy integration into existing designs without the need for complex routing or additional components.

Applications

The LTM9006IY-14#PBF is ideally suited for a wide array of applications, including:

• Wireless Infrastructure
• Telecommunications Equipment
• Medical Imaging Systems
• Test and Measurement Devices
• Radar and Satellite Communications

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the LTM9006IY-14#PBF is no exception. It is manufactured to meet the highest industry standards for performance and reliability, ensuring that it meets the stringent requirements of professional and industrial applications.

Technical Specifications

For detailed technical specifications, application support, and additional resources, please refer to the manufacturer's official documentation.
