The REF01EZ is a precision voltage reference from Analog Devices Inc., an industry leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. The REF01EZ provides a stable 10V output that can be adjusted over a ±6% range with minimal external components. This product is designed to maintain a high degree of accuracy and stability under varying conditions of operating temperature, supply voltage, and load conditions.

Key Features

• Output Voltage: Fixed 10V ±6% adjustment range
• Temperature Coefficient: Typically 10ppm/°C maximum for the ‘B’ grade
• Initial Accuracy: ±0.3% max for 'B' grade
• Load Regulation: Typically 0.015%/V for a 10mA change in source current
• Long-Term Stability: Typically 25ppm/√kHr (first 1000 hours)
• Low Quiescent Current: 1.4mA max
• Wide Operating Range: 4.5V to 40V

Applications

The REF01EZ is versatile and can be used in a variety of applications where a stable reference voltage is crucial. These include:

• Digital voltmeters
• Precision data acquisition systems
• Industrial process control systems
• Battery-powered equipment
• Analog-to-digital converters (ADCs)
• Digital-to-analog converters (DACs)

Performance and Durability

With its high precision and robust design, the REF01EZ is built to deliver reliable performance over a wide range of environmental conditions. It is encapsulated in a hermetically sealed package, which ensures long-term stability and protection against harsh conditions.

Easy Integration

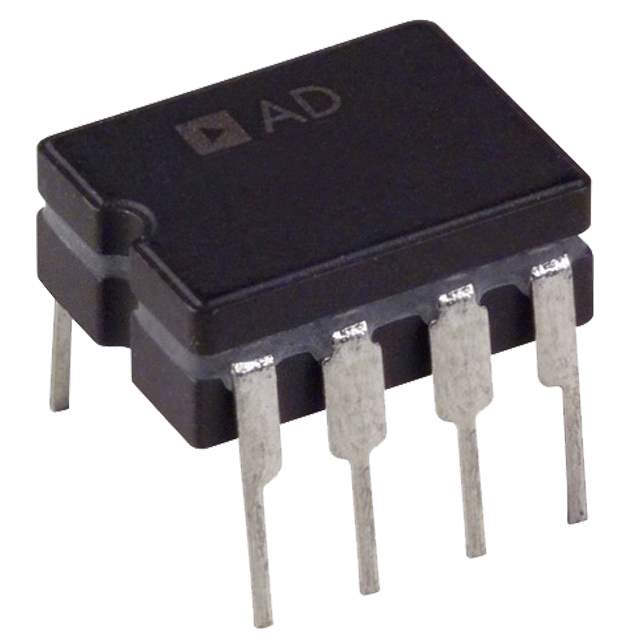

The REF01EZ is available in an 8-lead TO-99 hermetic package, making it easy to integrate into a wide variety of circuit designs. Its industry-standard pinout and small footprint allow for straightforward implementation without the need for complex circuitry or additional components.

For engineers and designers looking for a dependable voltage reference with high accuracy and stability, the REF01EZ from Analog Devices Inc. is an excellent choice that combines performance with ease of use.
