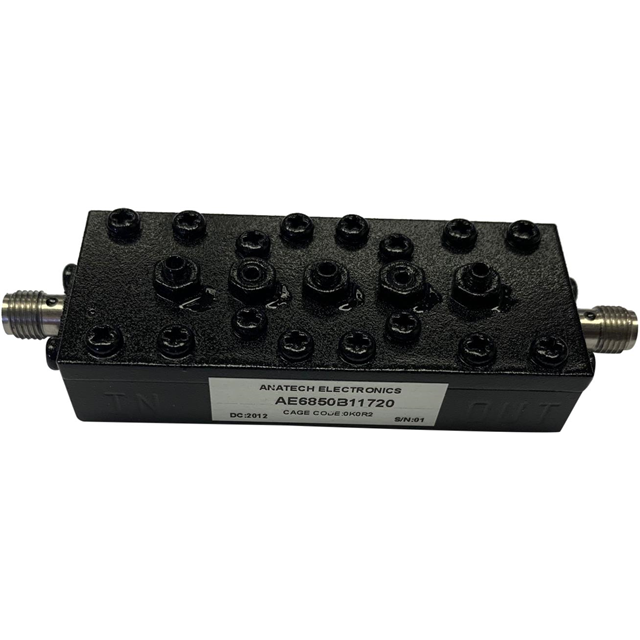

AE6850B11720 Real Image
Same model may have multiple batches, images only for reference.

AE6850B11720

Part No AE6850B11720
Manufacturer Anatech Electronics Inc.
Catalog RF Filters
Description 6850 MHZ CAVITY BAND PASS FILTER / 6.85GHz Center Frequency Band Pass RF Filter (Radio Frequency) 20MHz Bandwidth 2dB Module, SMA Connectors
Datasheet
AE6850B11720 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>RF Filters
Mfr Anatech Electronics Inc.
Package Box
Frequency 6.85GHz Center
Bandwidth 20MHz
Filter Type Band Pass
Insertion Loss 2dB
Mounting Type Chassis Mount
Package / Case Module, SMA Connectors
Dimension 2.402" L x 0.984" W (61.00mm x 25.00mm)
Height (Max) 0.709" (18.00mm)
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0000
Other Names 3078-AE6850B11720
Standard Package 1
Win Source Part Number 1174903-AE6850B11720
Ultra Librarian 3D Model Ultra Librarian AE6850B11720 CAD Model

Description

This electronic component is a Band Pass filter manufactured by Anatech Electronics Inc.

  • Filter Type: Band Pass
  • Center Frequency: 6.85GHz
  • Bandwidth: 20MHz
  • Insertion Loss: 2dB
  • Mounting Type: Chassis mount
  • Package / Case: Module with SMA connectors
