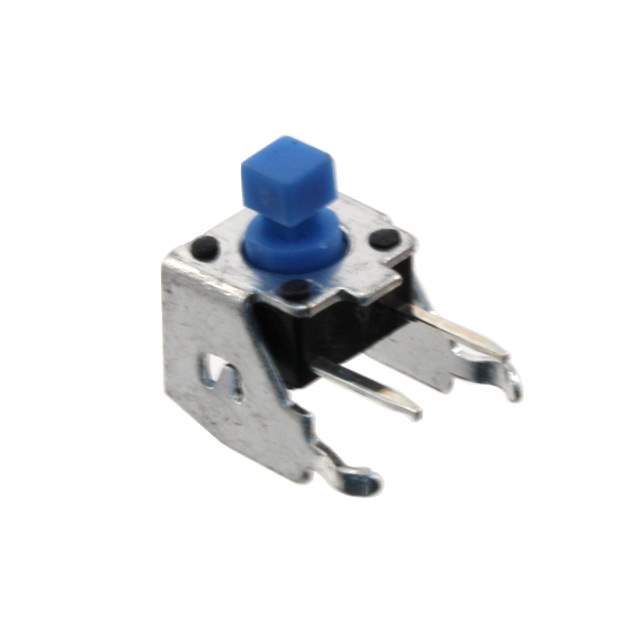

MJTP1105T Real Image
Same model may have multiple batches, images only for reference.

MJTP1105T

Part No MJTP1105T
Manufacturer Apem Inc.
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Manufacturer Apem Inc.
Packaging Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Plunger for Cap
Mounting Through Hole, Right Angle
Actuator Length, Right Angle 6.35mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 7.40mm x 7.20mm
Illumination Non-Illuminated
Operating Force 160gf
Features Tactile Feedback
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Thermoplastic
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number MJTP1105
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number MJTP1105T-ND,679-2394
Standard Package 1,000
Win Source Part Number 1323787-MJTP1105T
Ultra Librarian 3D Model Ultra Librarian MJTP1105T CAD Model

Description

The MJTP1105T tactile switch from APEM Inc. is a SPST-NO circuit switch with a switch travel of 0.25mm and mechanical life of 100,000 cycles.

  • Contact Rating: 0.05A @ 12VDC
  • Operating Force: 160gf
  • Illumination: Non-Illuminated
  • Operating Temperature: -20°C to 70°C
  • Actuator Type: Plunger for Cap
  • Termination Style: PC Pin
  • Mounting Type: Through Hole, Right Angle
