Same model may have multiple batches, images only for reference.

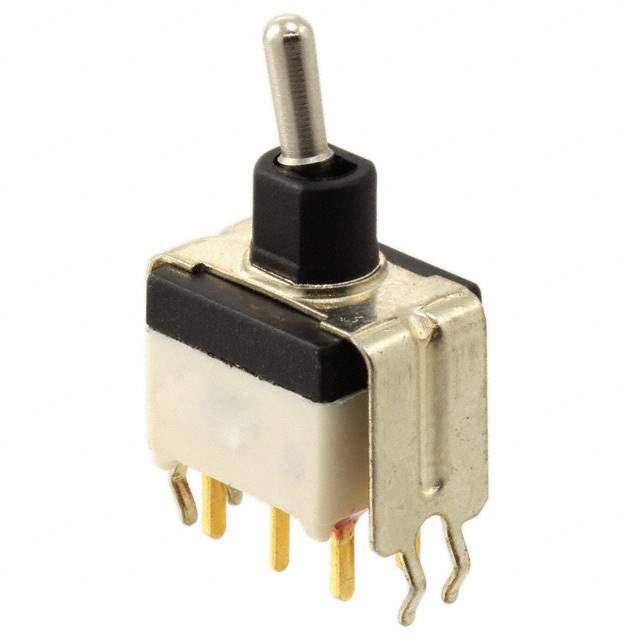

SY246CD7 Real Image
Same model may have multiple batches, images only for reference.

SY246CD7

Part No SY246CD7
Manufacturer Apem Inc.
Catalog Toggle Switches
Description SWITCH TOGGLE DPDT 0.4VA 20V / Toggle Switch DPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr APEM Inc.
Series S
Package Bulk
Mounting Type Through Hole
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 7.50mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Features Sealed
Temperature Range - Operating -20°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Base Product Number SY246
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1232923-SY246CD7
Ultra Librarian 3D Model Ultra Librarian SY246CD7 CAD Model

Description

The SY246CD7 is a toggle switch from APEM Inc.

  • Manufacturer: APEM Inc.
  • Product Name: SY246CD7
  • Circuit: DPDT
  • Switch Function: On-On
  • Actuator Type: Standard Round
  • Actuator Length: 7.50mm
  • Electrical Life: 100,000 cycles
  • Illumination: Non-Illuminated
  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating: 20V
  • Temperature Range: -20°C ~ 85°C
  • REACH: Unaffected
