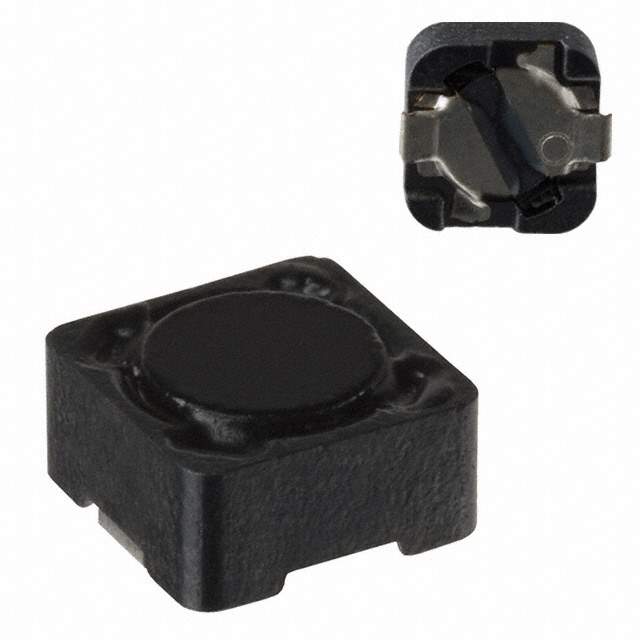

SPD73-104M Real Image
Same model may have multiple batches, images only for reference.

SPD73-104M

Part No SPD73-104M
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 100UH 541MA 790MOHM SM / 100 µH Shielded Drum Core, Wirewound Inductor 541 mA 790mOhm Max Nonstandard
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr API Delevan Inc.
Series SPD73
Package Tape & Reel (TR)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 541 mA
Current - Saturation (Isat) 541mA
Shielding Shielded
DC Resistance (DCR) 790mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) 0.154" (3.90mm)
RoHS Status RoHS non-compliant
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SPD73-104M TR 1000
Standard Package 1,000
Win Source Part Number 1190935-SPD73-104M
Ultra Librarian 3D Model Ultra Librarian SPD73-104M CAD Model

Description

The API Delevan Inc. SPD73 series fixed inductor is a drum core, wirewound type that has a shielding feature.

  • Manufacturer: API Delevan Inc.
  • Series: SPD73
  • Core Type: Drum Core
  • Construction: Wirewound
  • Shielding: Yes
  • Inductance: 100 µH
  • Tolerance: ±20%
  • Package: Tape & Reel (TR)
  • Mounting: SMD/SMT
  • RoHS Compliant: No
  • DC Resistance (DCR): 790mOhm max
  • Current Rating: 541mA
  • Inductance Frequency: 1 kHz
  • Status: Obsolete
  • Standard Package: 1,000
