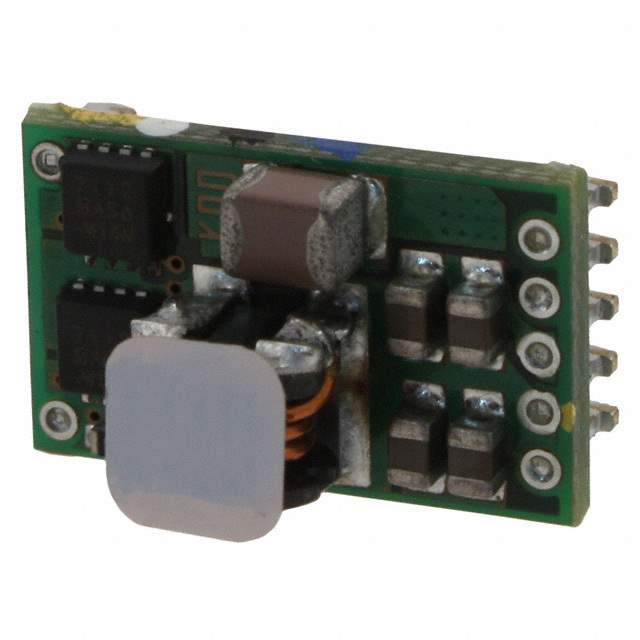

LDO06C-005W05-SJ Real Image
Same model may have multiple batches, images only for reference.

LDO06C-005W05-SJ

Part No LDO06C-005W05-SJ
Manufacturer Artesyn Embedded Technologies
Catalog Power Supplies Board Mount DCDC Converters
Description Single Output 6 A DC-DC C Class Non-Isolated DC/DC Converter
Datasheet
LDO06C-005W05-SJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Artesyn Embedded Technologies
Series LDO06C
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Input Voltage MIN 3V
Voltage Input MAX 13.8V
Voltage - Output 1 0.59 ~ 5.1 V
Current - Output (Maximum) 6A
Power (Watts) 30W
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP
Operating Temperature Range -40°C ~ 85°C
Efficiency 92%
Mounting SMD
Package Module
Size 0.65" L x 0.41" W x 0.44" H (16.5mm x 10.4mm x 11.2mm)
Win Source Part Number 739261-LDO06C-005W05-SJ
Popularity Medium
Supply and Demand Status Balance
Family Name LDO06C-005W05
Introduction Date January 14, 2014
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian LDO06C-005W05-SJ CAD Model

Description

The Artesyn Embedded Technologies Non-Isolated PoL Module is a high-quality power supply module designed for ITE (Commercial) applications.

  • Application: ITE (Commercial)
  • Power: 30W
  • Efficiency: 92%
  • Series: LDO06C
  • Size: 0.65" L x 0.41" W x 0.44" H (16.5mm x 10.4mm x 11.2mm)
  • Output: One Output
  • Voltage Range: 0.59 ~ 5.1V
  • Current - Output: 6A
  • Features: Remote On/Off, OVP, SCP
  • Package: Module
  • Mounting Type: SMD
  • Voltage - Input (Min): 3V
  • Voltage - Input (Max): 13.8V
  • Family Name: LDO06C-005W05
  • Alternative Parts: LDO06C-005W05-VJ and LDO06C-005W05-HJ
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Win Source Part Number: 739261-LDO06C-005W05-SJ
  • Introduction Date: January 14, 2014
  • Estimated EOL Date: 2027
  • Origin: Chinese
