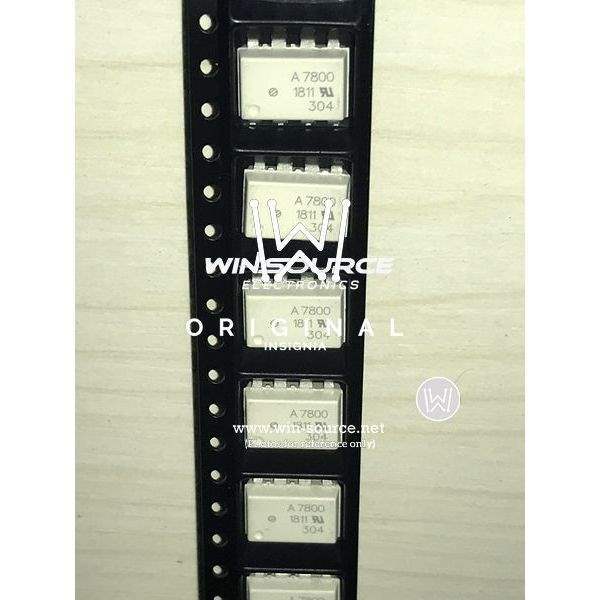

The HCPL-7800-000E/500E is a precision isolation amplifier manufactured by Avago Technologies Limited (now Broadcom Inc.). It's designed for accurate current and voltage sensing in high-voltage environments, providing galvanic isolation between the input and output circuits. This amplifier is commonly used in motor drives, power inverters, and renewable energy systems.

Applications

• Motor control and drive systems
• Inverter current sensing
• Power supply voltage sensing
• Data acquisition systems
• Renewable energy applications (e.g., solar inverters)

Features

• High accuracy and linearity: Ensures precise measurement of current and voltage.
• Galvanic isolation: Provides electrical isolation between input and output.
• Low offset drift: Maintains stable performance over temperature.
• Wide bandwidth: Supports a wide range of signal frequencies.
• Compact package: Allows for easy integration into small devices.
• Sigma-delta modulation technology: Provides high resolution and accuracy.

Benefits

• Precise current and voltage sensing: Enables accurate control and monitoring of systems.
• Electrical isolation: Protects sensitive circuits from high voltages.
• Improved system performance: Enhanced accuracy and stability lead to better overall system performance.
• Simplified circuit design: Reduces the need for external components.
• Increased safety: Galvanic isolation enhances system safety.

Additional Details

The HCPL-7800-000E/500E isolation amplifier uses sigma-delta modulation technology to achieve high resolution and accuracy. It provides a differential input for common-mode noise rejection. The output is a differential analog signal that can be easily interfaced with a microcontroller or other signal processing circuitry. The device is designed to meet stringent safety standards for high-voltage isolation. It is frequently used in applications requiring precise monitoring and control of high-power circuits. An external power supply is necessary. The two versions likely represent different isolation voltage ratings.
