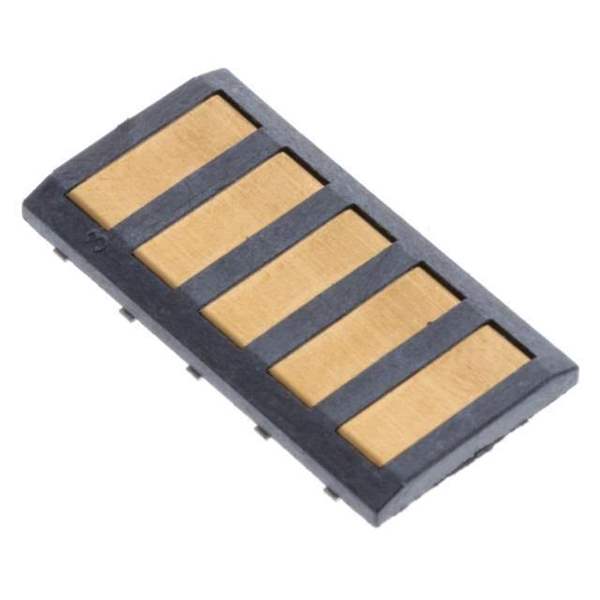

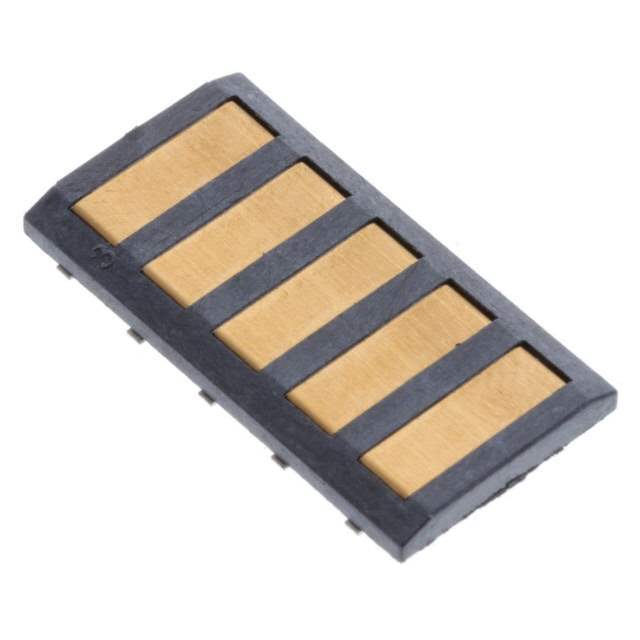

009155005402006 KYOCERA AVX
Same model may have multiple batches, images only for reference.

009155005402006

Part No 009155005402006
Manufacturer AVX Corp/Kyocera Corp
Catalog Rectangular Connectors
Description CONN SPRING BATTERY 5POS SMD
Datasheet
009155005402006 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KYOCERA AVX
Part Status Active
Connector Type Battery Contact
Number of Contacts 5
Pitch 0.157" (4.00mm)
Number of Rows 1
Mounting Type Surface Mount
Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 16.0µin (0.41µm)
Ultra Librarian 3D Model Ultra Librarian 009155005402006 CAD Model

Description

MECHANICAL

• Contact Material: Spring contact is Be Cu, Fixed contact is Phosphor Bronze

• Contact Plating: Gold over nickel mating area, pure Tin SMT tails

• Durability 5000 Cycles
