Same model may have multiple batches, images only for reference.

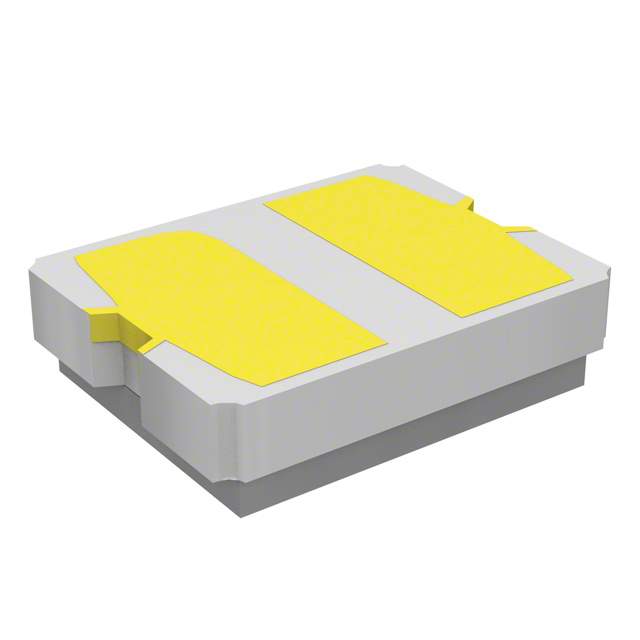

CX3225GA20000D0PTVCC Real Image
Same model may have multiple batches, images only for reference.

CX3225GA20000D0PTVCC

Part No CX3225GA20000D0PTVCC
Manufacturer AVX Corp/Kyocera Corp
Catalog Crystals
Description CRYSTAL 20.0000MHZ 8PF SMD / 20 MHz ±50ppm Crystal 8pF 100 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr KYOCERA AVX
Series CX3225GA, Kyocera
Package Tape & Reel
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±150ppm
Frequency Tolerance ±50ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 150°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.037" (0.95mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 478-CX3225GA20000D0PTVCC,1253-1154-2-ND,478-CX3225GA20000D0PTVCCDKR,1253-1154-1-ND,1254-1154-1-ND,478-CX3225GA20000D0PTVCCCT,478-CX3225GA20000D0PTVCC-ND,1253-1154-6,1254-1154-6,1253-1154-2,1254-1154-6-ND,1253-1154-1,1254-1154-1,1253-1154-6-ND,478-CX3225GA20000D0PTVCCTR
Standard Package 3,000
Win Source Part Number 977347-CX3225GA20000D0PTVCC
Ultra Librarian 3D Model Ultra Librarian CX3225GA20000D0PTVCC CAD Model

Description

The Kyocera CX3225GA20000D0PTVCC is a MHz crystal with a frequency of 20 MHz and a load capacitance of 8pF.

  • Frequency: 20 MHz
  • Load Capacitance: 8pF
  • ESR: 100 Ohms
  • Frequency Tolerance: ±50ppm
  • Height: 0.037"
  • Operating Temperature: -40°C to 150°C
  • RoHS Compliant: Yes
