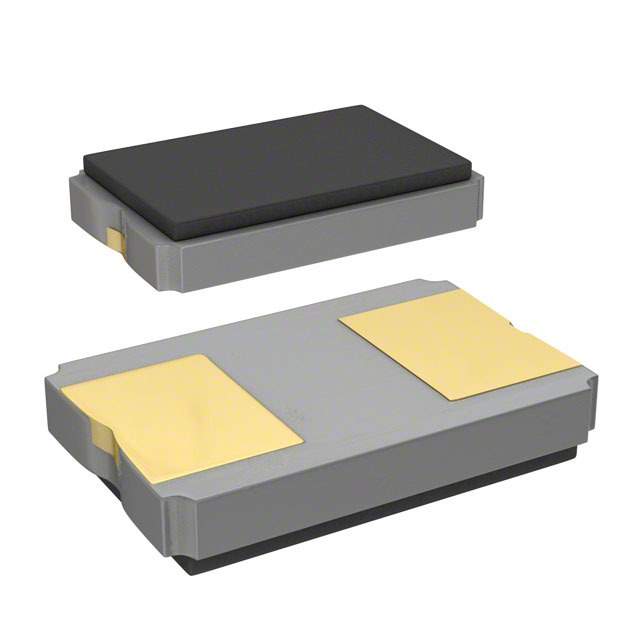

CX5032GB27000H0PESZZ Real Image
Same model may have multiple batches, images only for reference.

CX5032GB27000H0PESZZ

Part No CX5032GB27000H0PESZZ
Manufacturer AVX Corp/Kyocera Corp
Catalog Crystals
Description CRYSTAL 27.0000MHZ 12PF SMD / 27 MHz ±50ppm Crystal 12pF 100 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr KYOCERA AVX
Series CX5032GB, Kyocera
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 27 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 478-4365-6,478-4365-2-ND,478-4365-1-ND,478-4365-2,478-4365-1,478-CX5032GB27000H0PESZZ,478-4365-6-ND
Standard Package 1,000
Win Source Part Number 1029782-CX5032GB27000H0PESZZ
Ultra Librarian 3D Model Ultra Librarian CX5032GB27000H0PESZZ CAD Model

Description

The CX5032GB is a 27 MHz MHz crystal from KYOCERA AVX.

  • Frequency: 27 MHz MHz
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±50ppm
  • ESR: 100 Ohms
  • Load Capacitance: 12pF
  • Mode: Fundamental
  • Mounting Type: SMD (SMT)
  • Height: 0.047" (1.20mm)
  • Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Package: Tape and reel of 1000
