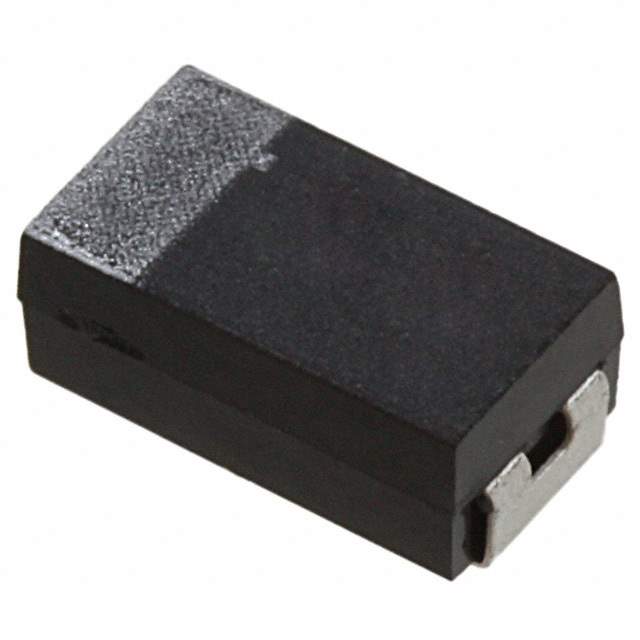

Same model may have multiple batches, images only for reference.

F931D156MCC

Name: F931D156MCC
Brand: AVX Corp/Kyocera Corp
SKU: 1111317
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	F931D156MCC
Manufacturer	AVX Corp/Kyocera Corp
Catalog	Tantalum Capacitors
Description	CAP TANT 15UF 20% 20V 2312 / 15 µF Molded Tantalum Capacitors 20 V 2312 (6032 Metric) 1.2Ohm @ 100kHz
Datasheet	F931D156MCC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Tantalum Capacitors
Mfr	KYOCERA AVX
Series	F93
Package	Tape & Reel
Capacitance	15 µF
Tolerance	±20%
Voltage - Rated	20 V
Type	Molded
ESR (Equivalent Series Resistance)	1.2Ohm @ 100kHz
Temperature Range - Operating	-55°C ~ 125°C
Lifetime @ Temp.	2000 Hrs @ 125°C
Mounting	SMD (SMT)
Package / Case	2312 (6032 Metric)
Dimension	0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max)	0.110" (2.80mm)
Manufacturer Size Code	C
Features	General Purpose
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Other Names	478-8279-1,478-8279-2,478-8279-6
Standard Package	500
Win Source Part Number	1111317-F931D156MCC
Ultra Librarian 3D Model	Ultra Librarian F931D156MCC CAD Model

Description

The KYOCERA AVX F93 series molded tantalum capacitor is a general-purpose capacitor that can be used in various applications.

Capacitance: 15 µF
Voltage Rating: 20 V
Mounting: SMD (SMT)
Temperature Range: -55°C to 125°C
ESR: 1.2Ohm @ 100kHz
Lifetime @ Temp: 2000 Hrs @ 125°C
Package/Case Size: 2312 (6032 Metric)
Dimension: 0.236" L x 0.126" W (6.00mm x 3.20mm)
