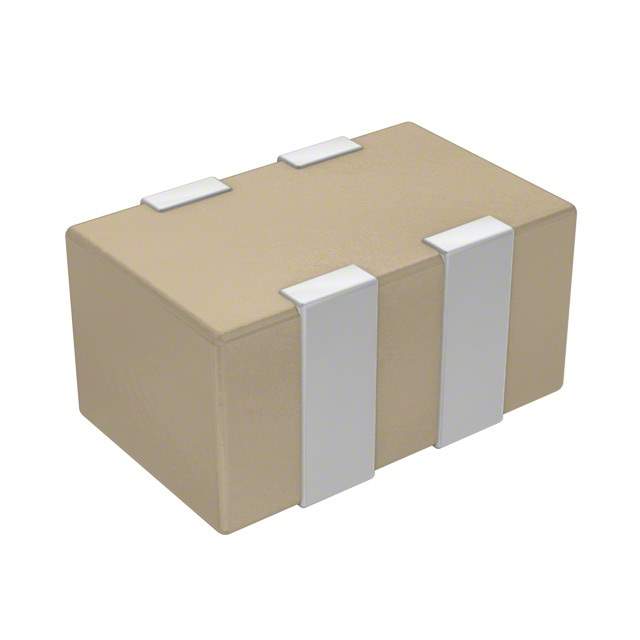

MGUG050050L2DP Real Image
Same model may have multiple batches, images only for reference.

MGUG050050L2DP

Part No MGUG050050L2DP
Manufacturer AVX Corp/Kyocera Corp
Catalog TVS - Varistors, MOVs
Description VARISTOR 17.2V 30A 0508 / 30 A Varistor 2 Circuit Surface Mount, MLCV 0508 (1220 Metric)
Datasheet
MGUG050050L2DP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr KYOCERA AVX
Package Tape & Reel
Maximum AC Volts 3.5 V
Maximum DC Volts 5 V
Varistor Voltage (Min) 17.2 V
Current - Surge 30 A
Energy 0.1J
Number of Circuits 2
Capacitance @ Frequency 425 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 0508 (1220 Metric)
Base Product Number MGUG050050
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1340307-MGUG050050L2DP
Ultra Librarian 3D Model Ultra Librarian MGUG050050L2DP CAD Model

Description

The MGUG050050L2DP is a transient voltage suppressor (TVS) from Kyocera AVX.

  • Category: Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
  • Number of Circuits: 2
  • Packaging: Tape and Reel
  • Standard Package: 1,000
  • Capacitance: 425 pF @ 1 MHz
  • Varistor Voltage (Min): 17.2 V
  • Surge Current: 30 A
  • Maximum AC Voltage: 3.5 V
  • Maximum DC Voltage: 5 V
  • Energy: 0.1J
  • Mounting Method: Surface Mount (MLCV)
  • Package/Case Size: 0508 (1220 Metric)
  • Operating Temperature: -55°C ~ 125°C (TA)
  • Supplier: Kyocera AVX
