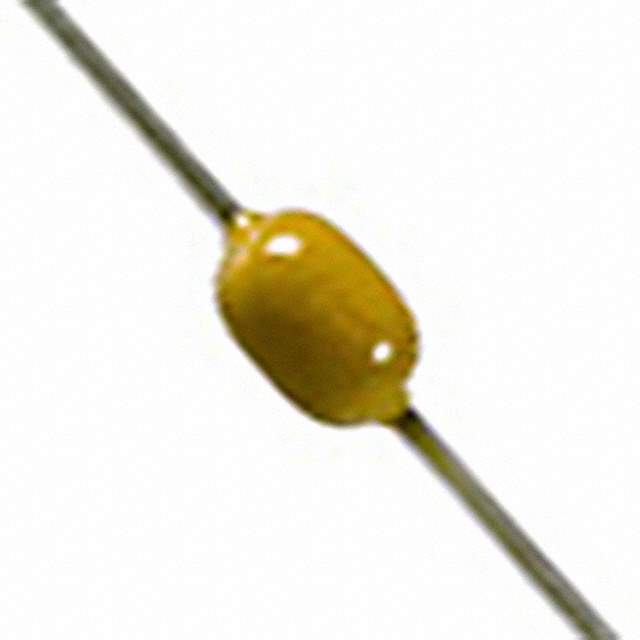

SA115E334ZAN Real Image
Same model may have multiple batches, images only for reference.

SA115E334ZAN

Part No SA115E334ZAN
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SA115E334ZAN Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SpinGuard® SA
Package Tape & Box (TB)
Capacitance 0.33 µF
Tolerance -20%, +80%
Voltage - Rated 50V
Temperature Coefficient Z5U
Temperature Range - Operating 10°C ~ 85°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Axial
Dimension 0.120" Dia x 0.170" L (3.05mm x 4.32mm)
Lead Style Straight
Standard Package 2,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0040
Win Source Part Number 1304594-SA115E334ZAN
Ultra Librarian 3D Model Ultra Librarian SA115E334ZAN CAD Model

Description

The SpinGuard® SA ceramic capacitor from KYOCERA AVX is a high-quality, general-purpose component that is ideal for a wide range of electronic applications.

  • Capacitance: 0.33 µF
  • Voltage Rating: 50V
  • Temperature Coefficient: Z5U
  • Operating Temperature: 10°C to 85°C
  • Lead Style: Straight
  • Mounting Type: Through-Hole
  • Dimension: 0.120" Dia x 0.170" L (3.05mm x 4.32mm)
  • RoHS Status: Non-Compliant
