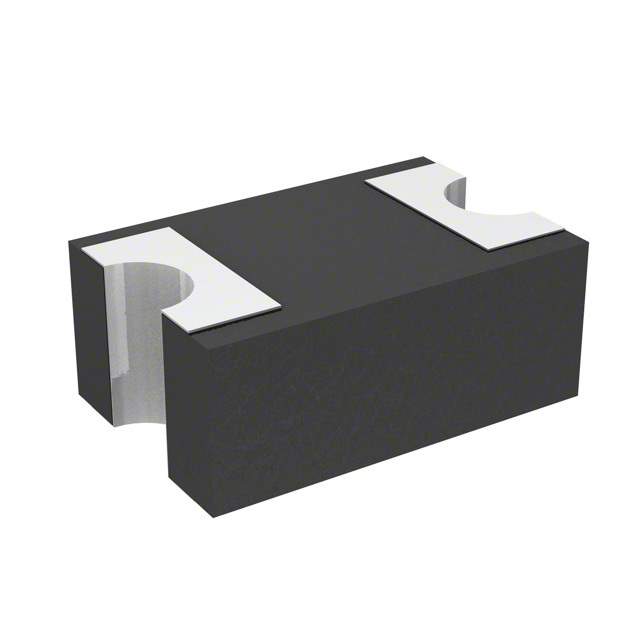

SD0805S020S1R0

Name: SD0805S020S1R0
Brand: AVX Corp/Kyocera Corp
SKU: 1325695
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SD0805S020S1R0
Manufacturer	AVX Corp/Kyocera Corp
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 20V 1A 0805 / Diode Schottky 20 V 1A Surface Mount 0805 (2012 Metric)
Datasheet	SD0805S020S1R0 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer	KYOCERA AVX
Packaging	Reel - TR
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	20 V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	450 mV @ 1 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	200 µA @ 20 V
Mounting	Surface Mount
Case / Package	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Operating Temperature - Junction	-55°C ~ 125°C
Base Product Number	SD0805S02
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	478-7800-2,478-7800-1,478-7800-6
Standard Package	3,000
Win Source Part Number	1325695-SD0805S020S1R0
Ultra Librarian 3D Model	Ultra Librarian SD0805S020S1R0 CAD Model

Alternative Products

Description

The KYOCERA AVX SD0805S020S1R0 is a fast recovery Schottky diode designed for use in various electronic applications.

Voltage Rating: 20V
Current Rating: 1A
Package: 0805 (2012 Metric)
Forward Voltage: 450mV @ 1A
ROHS3 Compliant: true
Reverse Leakage Current: 200 uA @ 20V
