Same model may have multiple batches, images only for reference.

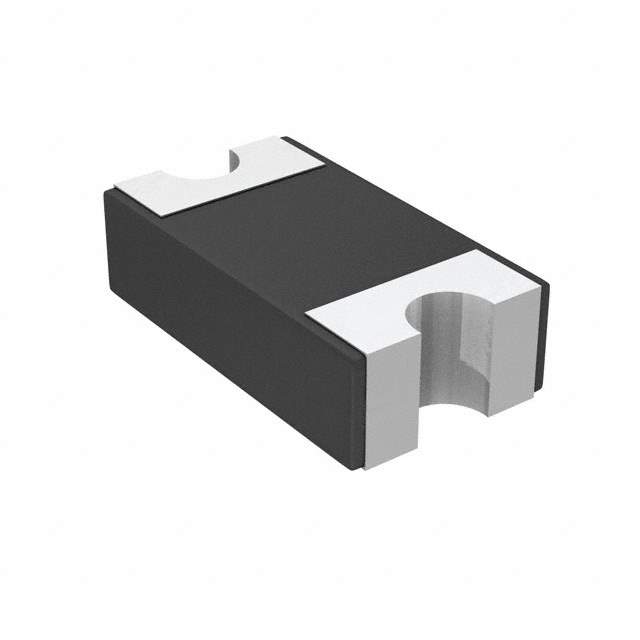

SD1206T040S2R0 Real Image
Same model may have multiple batches, images only for reference.

SD1206T040S2R0

Part No SD1206T040S2R0
Manufacturer AVX Corp/Kyocera Corp
Catalog Diodes, Rectifiers - Single
Datasheet
SD1206T040S2R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr KYOCERA AVX
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 2A (DC)
Voltage - Forward (Vf) (Max) @ If 500 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 40 V
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206 (3216 Metric)
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number SD1206T040S2R0
Other Names 478-7810-2,478-7810-1,478-7810-6,478-SD1206T040S2R0DKR,478-SD1206T040S2R0TR,478-7810-6,478-7810-2,478-7810-1,478-SD1206T040S2R0CT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282487-SD1206T040S2R0
Ultra Librarian 3D Model Ultra Librarian SD1206T040S2R0 CAD Model

Description

The KYOCERA AVX SD1206T040S2R0 is a fast recovery Schottky diode with a voltage rating of 40 V and a current rating of 2 A.

  • Forward Voltage: 500 mV @ 2 A
  • Reverse Leakage Current: 200 µA @ 40 V
  • Package: 1206 (3216 Metric) package
  • Packaging: Tape and Reel
  • Standard Package: 3,000
  • Operating Temperature Range: -55℃ to 125℃
  • ECCN: EAR99
  • REACH: Unaffected
