Same model may have multiple batches, images only for reference.

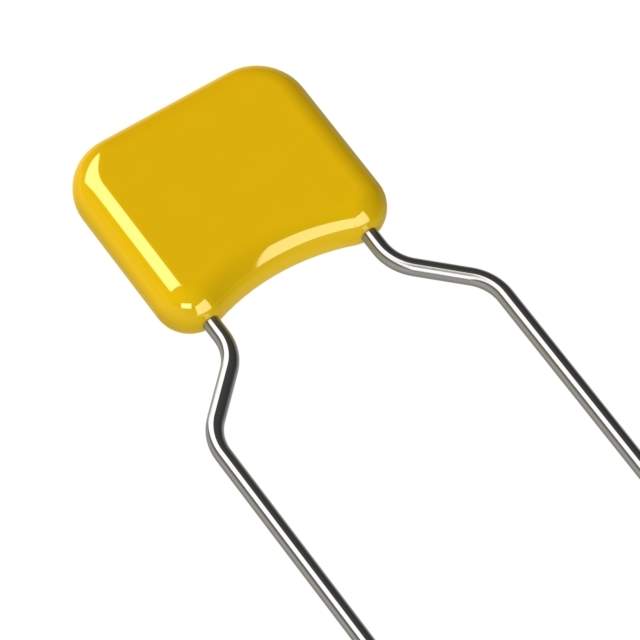

SR767C224MAR Real Image
Same model may have multiple batches, images only for reference.

SR767C224MAR

Part No SR767C224MAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SR767C224MAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SkyCap® SR
Package Bulk
Capacitance 0.22 µF
Tolerance ±20%
Voltage - Rated 500V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.500" L x 0.175" W (12.70mm x 4.45mm)
Height - Seated (Max) 0.560" (14.22mm)
Lead Spacing 0.400" (10.16mm)
Lead Style Formed Leads
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1305796-SR767C224MAR
Ultra Librarian 3D Model Ultra Librarian SR767C224MAR CAD Model

Description

The KYOCERA AVX SkyCap® SR 1305796-SR767C224MAR is a ceramic capacitor with a capacitance of 0.22 µF and a voltage rating of 500V.

  • Capacitance: 0.22 µF
  • Voltage Rating: 500V
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Package Type: Radial
  • Lead Spacing: 0.400" (10.16mm)
  • Mounting Type: Through-hole
