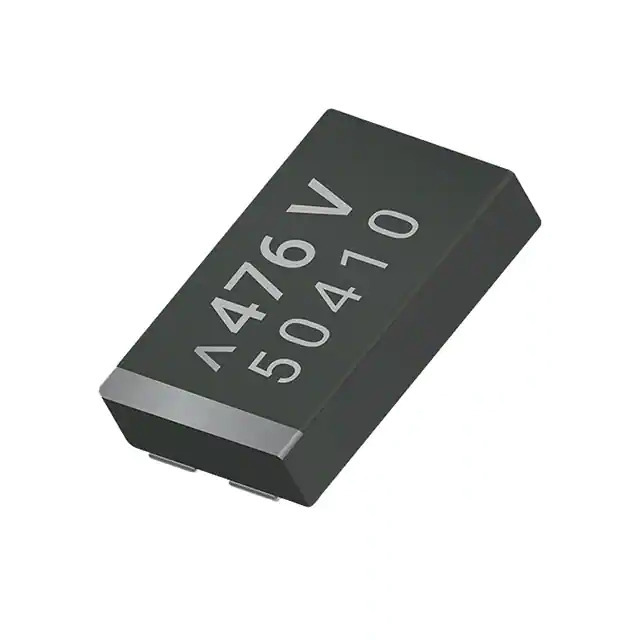

TCNX476M025R0100 AVX Corp/Kyocera Corp
Same model may have multiple batches, images only for reference.

TCNX476M025R0100

Part No TCNX476M025R0100
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 47UF 25V 2917 / 47 µF Molded Tantalum Polymer Capacitor 25 V 2917 (7343 Metric) 100mOhm @ 100kHz
Datasheet
TCNX476M025R0100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum - Polymer Capacitors
Mfr KYOCERA AVX
Series TCN J-CAP
Package Tape & Reel
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
Type Molded
ESR (Equivalent Series Resistance) 100mOhm @ 100kHz
Temperature Range - Operating -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Size / Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.059" (1.50mm)
Lead Spacing -
Manufacturer Size Code X
Ratings -
Features General Purpose
MSL Level 5 (48 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 1359732-TCNX476M025R0100
Ultra Librarian 3D Model Ultra Librarian TCNX476M025R0100 CAD Model

Description

The KYOCERA AVX TCNX476M025R0100 is a tantalum polymer capacitor with a capacitance of 47 µF and a voltage rating of 25V.

  • Applications: General Purpose
  • Series: TCN J-CAP
  • Package: Molded
  • Mounting Type: Surface Mount
  • Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height: 0.059" (1.50mm)
  • ESR (Equivalent Series Resistance): 100mOhm @ 100kHz
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
