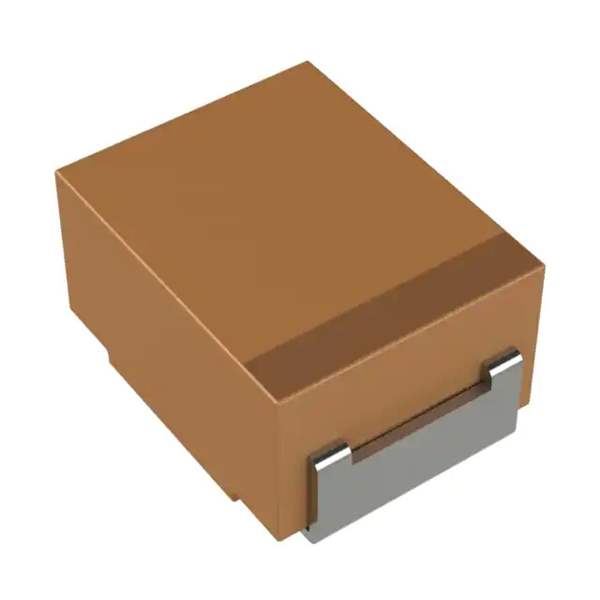

TPSB226K010T0700 AVX Corp/Kyocera Corp
Same model may have multiple batches, images only for reference.

TPSB226K010T0700

Part No TPSB226K010T0700
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum Capacitors
Description CAP TANT 22UF 10% 10V 1411 / 22 µF Molded Tantalum Capacitors 10 V 1411 (3528 Metric) 700mOhm @ 100kHz
Datasheet
TPSB226K010T0700 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr KYOCERA AVX
Series TPS
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±10%
Voltage - Rated 10 V
Type Molded
ESR (Equivalent Series Resistance) 700mOhm @ 100kHz
Temperature Range - Operating -55°C ~ 125°C
Lifetime @ Temp. -
Mounting Type Surface Mount
Package / Case 1411 (3528 Metric)
Size / Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max) 0.083" (2.10mm)
Lead Spacing -
Manufacturer Size Code B
Features General Purpose
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 1359621-TPSB226K010T0700
Ultra Librarian 3D Model Ultra Librarian TPSB226K010T0700 CAD Model

Description

The KYOCERA AVX TPS series capacitor is a general-purpose tantalum capacitor with a capacitance of 22 µF and a voltage rating of 10 V.

  • Series: TPS
  • Application: General Purpose
  • Capacitance: 22 µF
  • Voltage Rating: 10 V
  • Mounting Type: Surface Mount
  • Package / Case: 1411 (3528 Metric)
  • Tolerance: ±10%
  • Equivalent Series Resistance (ESR): 700mOhm @ 100kHz
  • Operating Temperature: -55°C to 125°C
  • Height: 0.083" (2.10mm)
