Same model may have multiple batches, images only for reference.

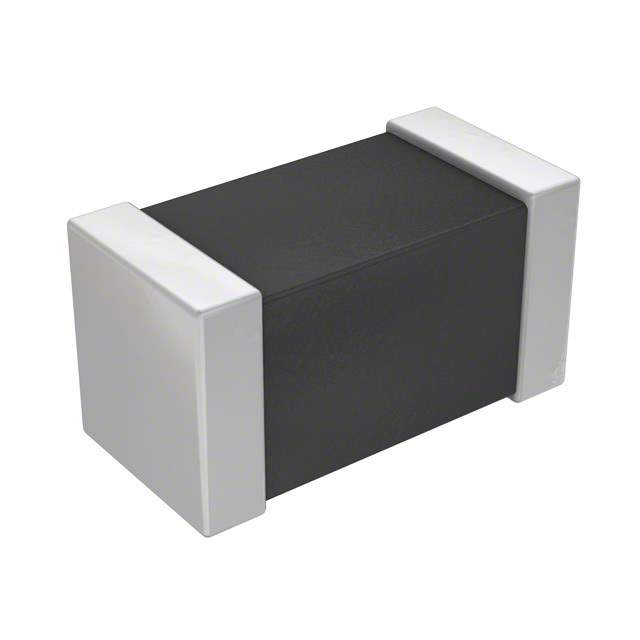

VC120631M650RP Real Image
Same model may have multiple batches, images only for reference.

VC120631M650RP

Part No VC120631M650RP
Manufacturer AVX Corp/Kyocera Corp
Catalog TVS - Varistors, MOVs
Description VARISTOR 1206 / 39 V 200 A Varistor 1 Circuit Surface Mount, MLCV 1206 (3216 Metric)
Datasheet
VC120631M650RP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr KYOCERA AVX
Series TransGuard®
Package Tape & Reel
Maximum AC Volts 25 V
Maximum DC Volts 31 V
Varistor Voltage (Min) 35.1 V
Varistor Voltage (Typ) 39 V
Varistor Voltage (Max) 42.9 V
Current - Surge 200 A
Energy 1J
Number of Circuits 1
Capacitance @ Frequency 500 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 1206 (3216 Metric)
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1336898-VC120631M650RP
Ultra Librarian 3D Model Ultra Librarian VC120631M650RP CAD Model

Description

The KYOCERA AVX 1336898-VC120631M650RP varistor is a part of the TransGuard® series manufactured by KYOCERA AVX, used for circuit protection against transient voltage surges.

  • Series: TransGuard®
  • Capacitance: 500 pF @ 1 kHz
  • Varistor Voltage Range: 35.1V to 42.9V
  • Maximum AC Voltage: 25V
  • Maximum DC Voltage: 31V
  • Surge Current: 200A
  • Energy Rating: 1J
  • Mounting Type: Surface Mount, MLCV
  • Package / Case: 1206 (3216 Metric)
  • Operating Temperature: -55°C ~ 125°C (TA)
  • Packaging: Tape and Reel
  • Packaging Quantity: 2,000 Units
