Same model may have multiple batches, images only for reference.

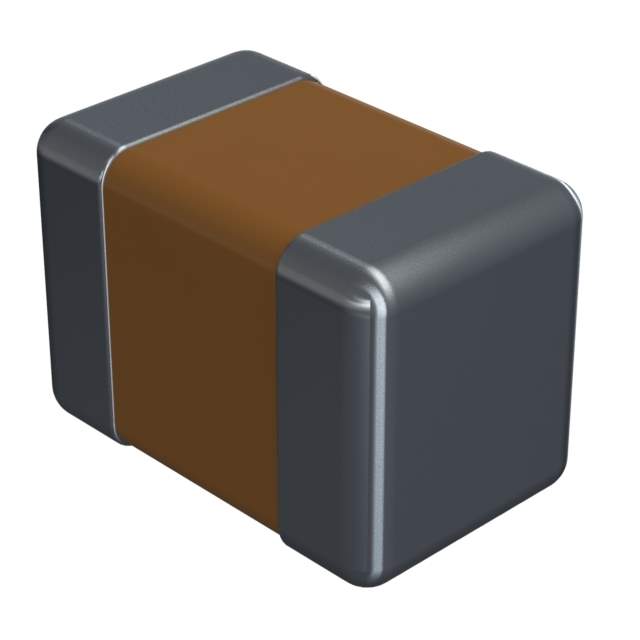

0805ZC684KAT2A Real Image
Same model may have multiple batches, images only for reference.

0805ZC684KAT2A

Part No 0805ZC684KAT2A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 0.68UF 10V X7R 0805
Datasheet
0805ZC684KAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Capacitance 0.68μF
Tolerance ±10%
Voltage Rating 10V
Temperature Coefficient X7R
Temperature Range - Operating -55°C to 125°C
Applications General Purpose
Mounting Surface Mount, MLCC
Dimension 0.079" L x 0.049" W (2.01mm x 1.25mm)
Thickness (Max) 0.055" (1.40mm)
Win Source Part Number 1000406-0805ZC684KAT2A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0805ZC684KAT2A CAD Model

Description

The AVX Corporation 1000406-0805ZC684KAT2A is a surface mount MLCC capacitor.

  • Capacitance: 0.68μF
  • Voltage Rating: 10V
  • Tolerance: ±10%
  • Suitable for: General-purpose applications
  • Supply and Demand Status: Balanced
  • Temperature Coefficient: X7R
  • Temperature Range: -55°C to 125°C
