Same model may have multiple batches, images only for reference.

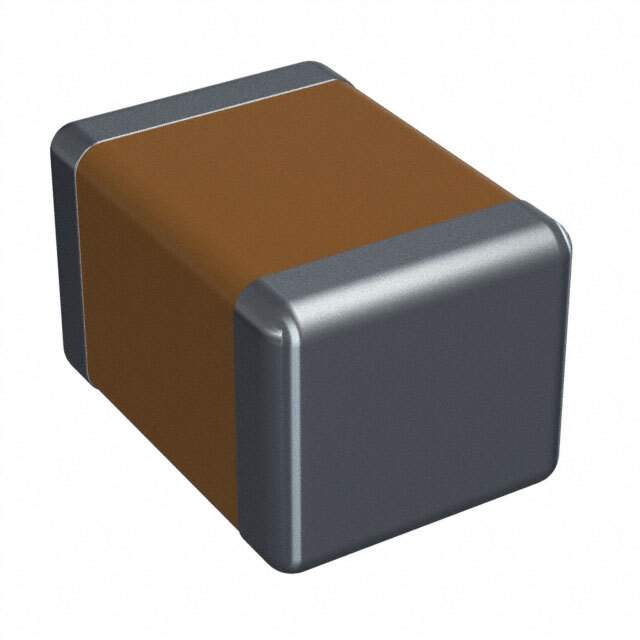

1812AA151KAT1AJ Real Image
Same model may have multiple batches, images only for reference.

1812AA151KAT1AJ

Part No 1812AA151KAT1AJ
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 150PF 1KV C0G/NP0 1812
Datasheet
1812AA151KAT1AJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel package
Capacitance 150pF
Tolerance ±10%
Voltage Rating DC 1000V (1kV)
Temperature Coefficient C0G, NP0
Operating Temperature Range -55°C ~ 125°C
Features High Voltage
Applications General
Mounting Surface Mount, MLCC
Package 1812 (4532 Metric)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Thickness (Maximum) 0.100" (2.54mm)
Win Source Part Number 760664-1812AA151KAT1AJ
Popularity Medium
Supply and Demand Status Balance
Family Name 1812
Introduction Date October 27, 2017
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2035
Ultra Librarian 3D Model Ultra Librarian 1812AA151KAT1AJ CAD Model

Description

The AVX Corporation 760664-1812AA151KAT1AJ is a surface mountable, MLCC capacitor.

  • Voltage Rating: 1000V (1kV)
  • Capacitance: 150pF
  • Tolerance: ±10%
  • Temperature Coefficient: C0G, NP0
  • Category: Capacitors
  • Operating Temperature: -55°C to 125°C
  • Thickness (Maximum): 0.100" (2.54mm)
  • Dimension: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Supply and Demand: Balanced
  • Package: Reel
  • Introduction Date: October 27, 2017
  • ECCN: EAR99
  • Halogen Free: Yes
  • EOL Date: 2035
