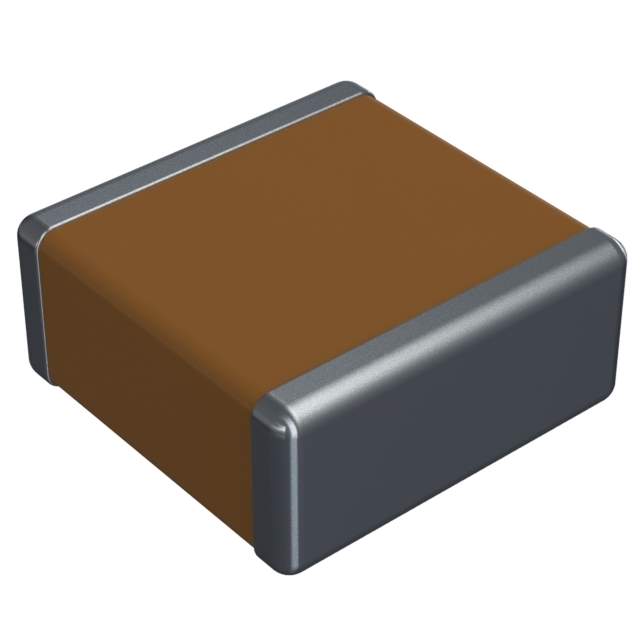

2225GC103KAT1A Real Image
Same model may have multiple batches, images only for reference.

2225GC103KAT1A

Part No 2225GC103KAT1A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 10000PF 2KV X7R 2225
Datasheet
2225GC103KAT1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel package
Capacitance 10000pF
Tolerance ±10%
Voltage Rating DC 2000V (2kV)
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Features High Voltage
Applications General
Mounting Surface Mount, MLCC
Package 2225 (5763 Metric)
Dimension 0.225" L x 0.250" W (5.72mm x 6.35mm)
Thickness (Maximum) 0.100" (2.54mm)
Win Source Part Number 761839-2225GC103KAT1A
Popularity Medium
Supply and Demand Status Limited
Family Name 2225
Introduction Date October 27, 2017
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2035
Ultra Librarian 3D Model Ultra Librarian 2225GC103KAT1A CAD Model

Description

AVX Corporation's 2225GC103KAT1A is a high voltage ceramic capacitor from AVX Corporation.

  • Capacitance: 10000pF
  • Voltage Rating DC: 2000V (2kV)
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Package Type: 2225 (5763 Metric)
  • Mounting: Surface mount, MLCC
  • Operating Temperature Range: -55°C ~ 125°C
  • Alternatives: 2225B103K202NX144, 2225B103K202NT, 202S48W103KV4E
  • Introduction Date: October 27, 2017
  • Popularity: Medium
  • Supply and Demand: Limited
  • ECCN: EAR99
  • Country of Origin: United States of America
  • EOL Date: Estimated 2035
  • Compliance: Halogen-free
