Same model may have multiple batches, images only for reference.

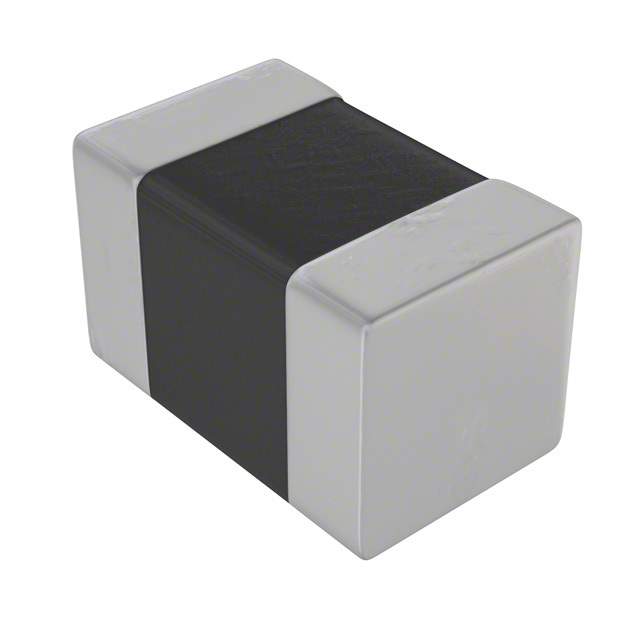

L08054R7DEWTR Real Image
Same model may have multiple batches, images only for reference.

L08054R7DEWTR

Part No L08054R7DEWTR
Manufacturer AVX Corporation
Catalog Fixed Inductors
Description Accu-L® SMD High-Q RF Inductor | FIXED IND 4.7NH 750MA 100 MOHM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer AVX Corporation
Packaging Tape and Reel
Type Thin Film
Material - Core Non-Magnetic
Inductance 4.7nH
Tolerance ±0.5nH
Current Rating (Amps) 750mA
Shielding Unshielded
DC Resistance (DCR) 100mOhm Max
Q at Freq 43 at 450MHz
Frequency - Self Resonant 5.5GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 450MHz
Mounting Style SMD
Manufacturer Package 0805
Supplier Device Package 0805
Parts Dimension 0.083" L x 0.059" W (2.11mm x 1.50mm)
Height - Seated (Maximum) 0.041" (1.04mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 1194111-L08054R7DEWTR
Manufacturer Homepage www.avx.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian L08054R7DEWTR CAD Model

Description

AVX Corporation's 4.7nH inductor is a thin film, surface mount component that comes in a tape and reel packaging. It is an unshielded type inductor with a tolerance of ±0.5nH and a DC resistance of 100mOhm max.

  • Inductance Tolerance: ±0.5nH
  • DC Resistance: 100mOhm max
  • Frequency Self-Resonant: 5.5GHz
  • Operating Temperature Range: -55°C to 125°C
  • Package: 0805
