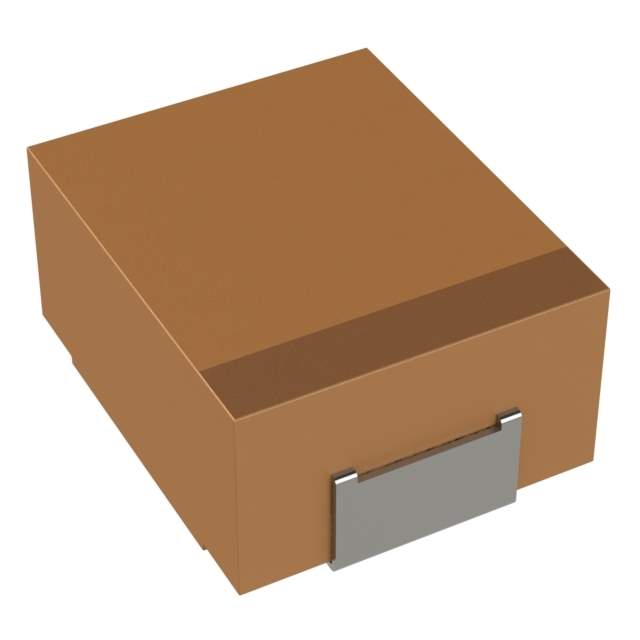

The TPSV477M010R0060 is a tantalum capacitor manufactured by AVX Corporation. It's a surface-mount solid electrolytic capacitor designed for high-reliability applications requiring stable capacitance and low equivalent series resistance (ESR). The "TPS" series indicates a professional-grade tantalum capacitor.

Applications:

• Power Supply Filtering: Smoothing output voltage ripple in power supplies.
• DC-DC Converters: Input and output filtering in DC-DC converters.
• Bypass Capacitors: Bypassing noise and transients in digital circuits.
• Timing Circuits: Timing and energy storage in various circuit designs.

Features:

• Capacitance: 470 µF (477).
• Voltage Rating: 10V DC.
• Tolerance: Typically ±20% (M).
• Low ESR: Low equivalent series resistance for reduced power dissipation and improved performance.
• Surface Mount: Designed for automated pick-and-place assembly.
• Solid Electrolyte: Provides stable performance and long life.

Benefits:

• High Reliability: Designed for high-reliability applications.
• Stable Performance: Solid electrolyte provides stable capacitance over temperature and voltage.
• Low ESR: Reduces power losses and improves circuit performance.
• Compact Size: Small footprint saves board space.

Additional Details:

The TPSV477M010R0060 is typically available in a standard EIA case size for tantalum capacitors. The operating temperature range is generally -55°C to +125°C. Derating the voltage rating is recommended for operation at higher temperatures to improve reliability. The ESR value is a crucial parameter for selecting this capacitor for power supply filtering applications. The datasheet provides detailed specifications, including ESR vs. frequency curves, impedance vs. frequency curves, and ripple current ratings. It is often used in applications where high reliability and stable performance are critical requirements. The part is RoHS compliant.
