Same model may have multiple batches, images only for reference.

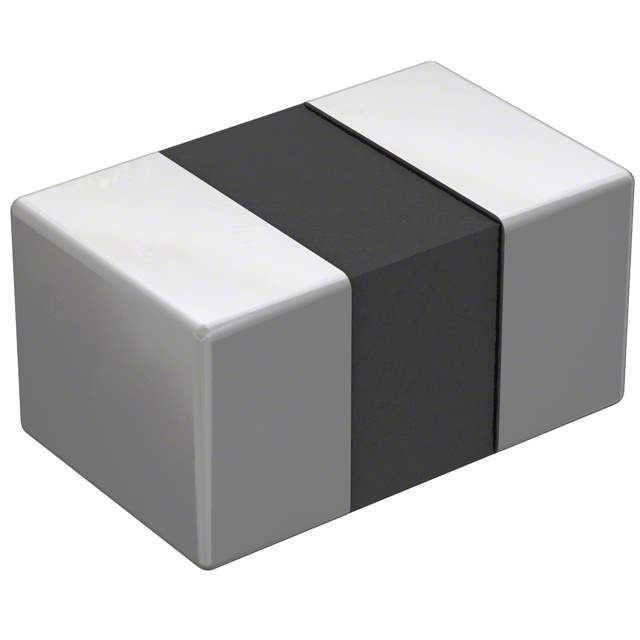

VC080514A300RP Real Image
Same model may have multiple batches, images only for reference.

VC080514A300RP

Part No VC080514A300RP
Manufacturer AVX Corporation
Catalog TVS - Varistors, MOVs
Description VARISTOR 18.5V 40A 0805
Datasheet
VC080514A300RP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Varistor Voltage (Min) 16.28V
Varistor Voltage (Typ) 18.5V
Varistor Voltage (Max) 20.72V
Current - Surge 40A
Energy 0.10J
Number of Circuits 1
Maximum AC Volts 10VAC
Maximum DC Volts 14VDC
Capacitance @ Frequency 325pF @ 1kHz
Temperature Range - Operating -55°C to 125°C (TA)
Mounting Surface Mount, MLCV
Dimension 0805 (2012 Metric)
Win Source Part Number 098501-VC080514A300RP
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VC080514A300RP CAD Model

Description

The AVX Corporation VC080514A300RP is a surface mount, MLCV type capacitor with a capacitance of 325pF @ 1kHz.

  • Capacitance: 325pF @ 1kHz
  • Varistor Voltage Range: 16.28V to 20.72V
  • Typical Voltage: 18.5V
  • Maximum AC Voltage: 10VAC
  • Maximum DC Voltage: 14VDC
  • Surge Current: Up to 40A
  • Energy Rating: 0.10J
  • Function: Circuit protection component
  • Operating Temperature Range: -55°C to 125°C (TA)
  • Dimension: 0805 (2012 Metric)
  • Packaging: Reel - TR
