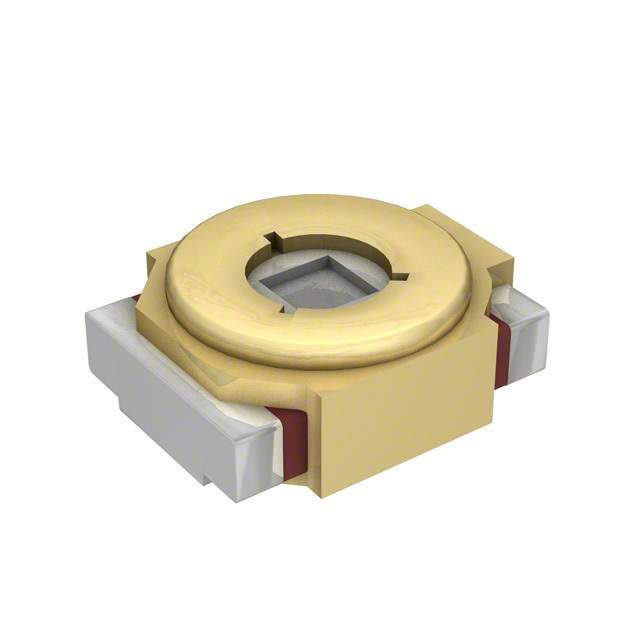

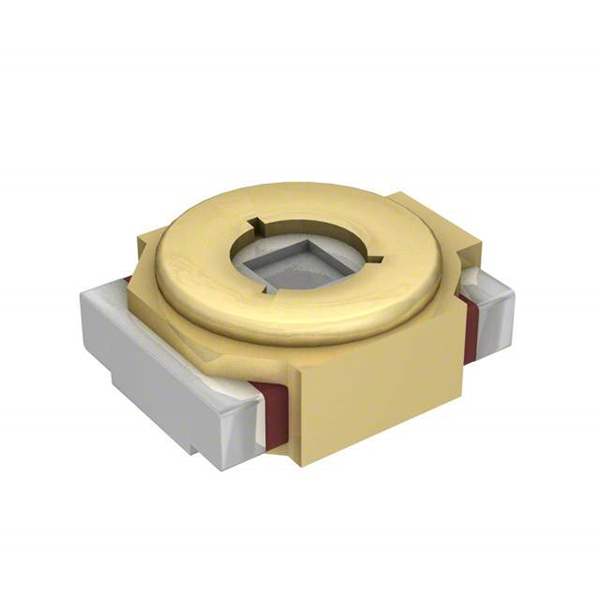

TZV2Z2R5A110R00 Murata Electronics North America
Same model may have multiple batches, images only for reference.

TZV2Z2R5A110R00

Part No TZV2Z2R5A110R00
Manufacturer Murata Electronics North America
Catalog Trimmers, Variable Capacitors
Description CAP TRIMMER 0.65-2.5PF 25V SMD
Datasheet
TZV2Z2R5A110R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Trimmers, Variable Capacitors
Mfr Murata Electronics North America
Series TZV2
Package Tape & Reel
Product Status Not For New Designs
Capacitance Range 0.65 ~ 2.5pF
Adjustment Type Top
Voltage - Rated 25 V
Dielectric Material Ceramic
Q @ Freq 200 @ 200MHz
Size / Dimension 0.126" L x 0.091" W (3.20mm x 2.30mm)
Height - Seated (Max) 0.057" (1.45mm)
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Surface Mount
Features General Purpose
Base Product Number TZV2Z2R5
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.30.0010
Win Source Part Number 384525-TZV2Z2R5A110R00
Ultra Librarian 3D Model Ultra Librarian TZV2Z2R5A110R00 CAD Model

Description

The TZV2Z2R5A110R00 is a general-purpose variable capacitor from Murata Electronics.

  • Series: TZV2
  • Capacitance Range: 0.65 ~ 2.5pF
  • Rated Voltage: 25V
  • Adjustment Type: Top
  • Mounting: Surface mountable
  • Package Size: 0.126" L x 0.091" W (3.20mm x 2.30mm)
  • Maximum Seated Height: 0.057" (1.45mm)
  • Packaging: Tape and reel
  • Standard Package: 2,000 pcs
  • Operating Temperature: -25°C to 85°C
