Same model may have multiple batches, images only for reference.

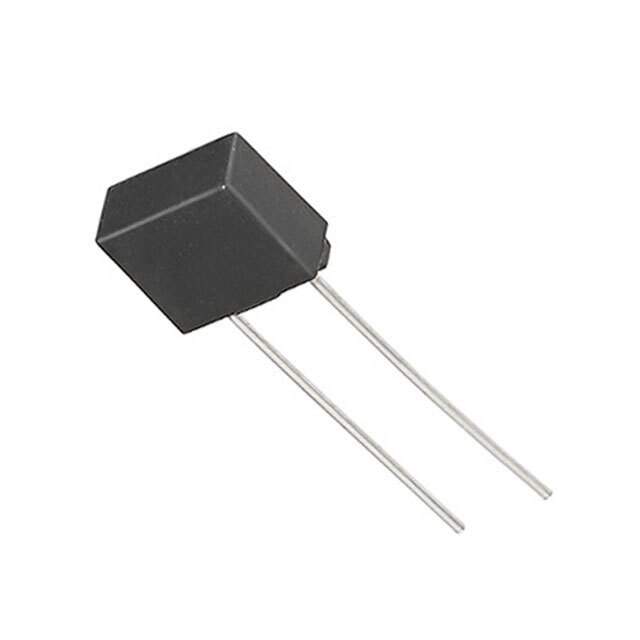

0697W2500-02 Real Image
Same model may have multiple batches, images only for reference.

0697W2500-02

Part No 0697W2500-02
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE 2.5A 350V RADIAL  /  2.5 A 350 V AC 72 V DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Box
Datasheet
0697W2500-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series 0697W
Package Cut Tape (CT),Tape & Box (TB)
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2.5 A
Voltage Rating - AC 350 V
Voltage Rating - DC 72 V
Response Time Slow Blow
Package / Case Radial, Box
Breaking Capacity @ Rated Voltage 100A
Melting I2t 45
Approval Agency AEC-Q200, CQC, cURus, PSE, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm)
DC Cold Resistance 0.025 Ohms
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 0697W250002,507-1837-1,507-1837-3
Standard Package 1,000
Win Source Part Number 976962-0697W2500-02
Ultra Librarian 3D Model Ultra Librarian 0697W2500-02 CAD Model

Description

The 976962-0697W2500-02 is a slow-blow through-hole fuse designed for circuit protection.

  • Voltage Rating: 350V AC and 72V DC
  • Breaking Capacity @ Rated Voltage: 100A
  • Melting I2t: 45
  • DC Cold Resistance: 0.025 ohms
  • Current Rating: 2.5A
  • Packaging: Cut tape and tape and box
  • Mounting: Radial box technology
  • Standard Package: 1000
  • Operating Temperature Range: -55°C to 125°C
  • Approvals: AEC-Q200, CQC, cURus, PSE, and VDE
