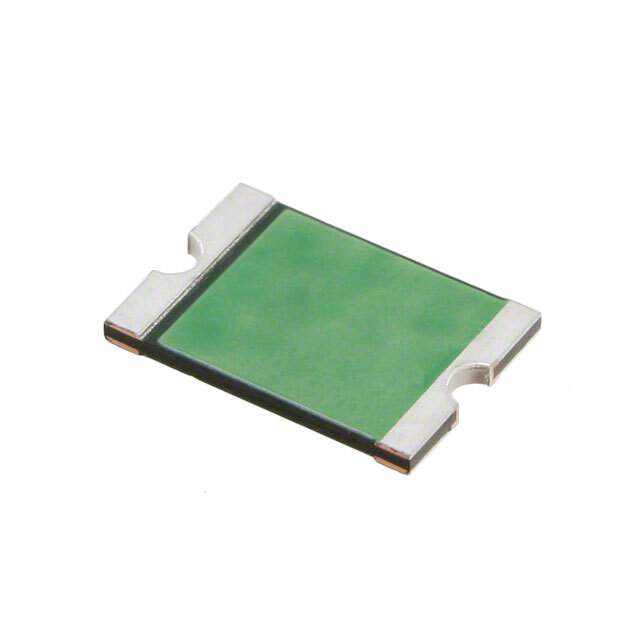

0ZCF0300AF2C Real Image
Same model may have multiple batches, images only for reference.

0ZCF0300AF2C

Part No 0ZCF0300AF2C
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 15V 3A 2920 / Polymeric PTC Resettable Fuse 15V 3 A Ih Surface Mount 2920 (7351 Metric), Concave
Datasheet
0ZCF0300AF2C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Bel Fuse Inc.
Series 0ZCF
Package Tape & Reel
Type Polymeric
Voltage - Max 15V
Current - Max 100 A
Current - Hold (Ih) (Max) 3 A
Current - Trip (It) 5.2 A
Time to Trip 20 s
Resistance - Initial (Ri) (Min) 10 mOhms
Resistance - Post Trip (R1) (Max) 48 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2920 (7351 Metric), Concave
Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.045" (1.15mm)
Approval Agency AEC-Q200, cURus, TUV
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 507-1753-6,507-1753-2,507-1753-1
Standard Package 2,000
Win Source Part Number 986563-0ZCF0300AF2C
Ultra Librarian 3D Model Ultra Librarian 0ZCF0300AF2C CAD Model

Description

The 986563-0ZCF0300AF2C PTC resettable fuse is a polymeric type of circuit protection from Bel Fuse Inc.

  • Maximum Thickness: 0.045" (1.15mm)
  • Mounting Type: through surface
  • Package: tape and reel
  • Standard Package: 2,000
  • Operating Temperature Range: -40°C to 85°C
  • Voltage Rating: 15V
  • Maximum Current: 100 A
  • Current Hold (Ih): 3 A
  • Current Trip (It): 5.2 A
  • Time to Trip: 20 s
  • REACH Status: not affected
  • HTSUS: 8533.40.8070
