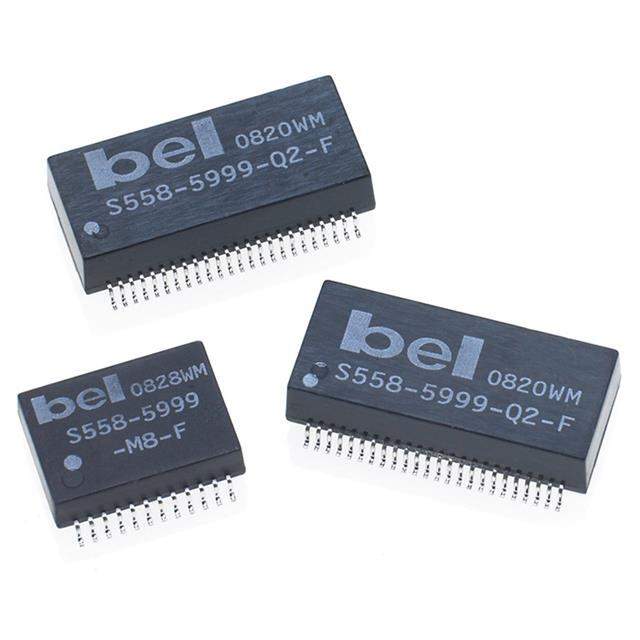

S558-5500-76 Real Image
Same model may have multiple batches, images only for reference.

S558-5500-76

Part No S558-5500-76
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description TRANSFORMER PULSE / 120µH, 350µH LAN 1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
S558-5500-76 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bel Fuse Inc.
Package Tape & Reel (TR)
Transformer Type LAN 1000 Base-T
Inductance 120µH, 350µH
Mounting SMD (SMT)
Dimension 0.690" L x 0.480" W (17.53mm x 12.19mm)
Height - Seated (Max) 0.225" (5.71mm)
Other Names R558-5500-76
Standard Package 380
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232774-S558-5500-76
Ultra Librarian 3D Model Ultra Librarian S558-5500-76 CAD Model

Description

The Bel Fuse Inc. 1232774-S558-5500-76 transformer is a LAN 1000 Base-T pulse transformer with two inductance values of 120µH and 350µH.

  • Type: LAN 1000 Base-T pulse transformer
  • Inductance: 120µH and 350µH
  • Mounting: Surface mounted
  • Package: Tape and reel
  • Standard Package: 380
  • Height: 0.225" (5.71mm)
  • REACH: Not affected by REACH status
  • HTSUS: 8504.31.2000
  • Win Source Part Number: 1232774-S558-5500-76
