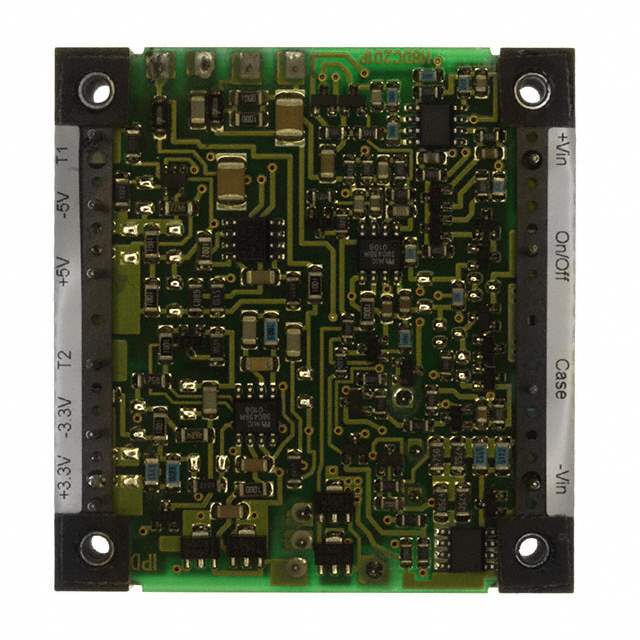

Same model may have multiple batches, images only for reference.

HBD040ZGE-A

Name: HBD040ZGE-A
Brand: Bel Power Solutions
SKU: 141345
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	HBD040ZGE-A
Manufacturer	Bel Power Solutions
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONV DC-DC 48V IN 5/3.3V OUT 40W
Datasheet	HBD040ZGE-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Bel Power Solutions
Series	HBD
Packaging	Bulk
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	34V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Voltage - Output 2	3.3V
Current - Output (Max)	8A, 12A
Power (Watts) - Manufacture Series	40W
Voltage - Isolation	1.5kV (1500V)
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	10-DIP Module
Size / Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Operating Temperature Range	-40°C ~ 100°C
Efficiency	80%
Power (Watts) - Max	40W
Win Source Part Number	142619-HBD040ZGE-A
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian HBD040ZGE-A CAD Model

Alternative Products

Description

The Bel Power Solutions HBD040ZGE-A is a DC DC converter electronic component product that is part of the medium-popularity electronic component family. This product is manufactured by Bel Power Solutions and can be identified by the Win Source Part Number 142619.

Type: Isolated Module
Mounting Style: Through-Hole
Voltage Isolation: 1.5kV
Outputs: 2
Maximum Output Current: 8A and 12A
Application: Suitable for commercial ITE applications
