Same model may have multiple batches, images only for reference.

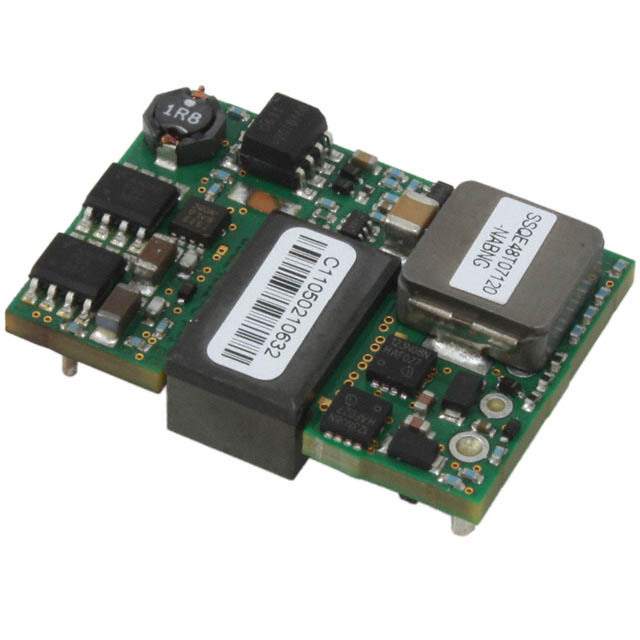

SSQE48T07120-NABNG Real Image
Same model may have multiple batches, images only for reference.

SSQE48T07120-NABNG

Part No SSQE48T07120-NABNG
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 84W / Isolated Module DC DC Converter 1 Output 12V 7A 36V - 75V Input
Datasheet
SSQE48T07120-NABNG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Bel Power Solutions
Series SSQE48
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 7A
Power (Watts) 84 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 92%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/16 Brick
Dimension 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.8mm x 9.5mm)
Control Features Enable, Active Low
Base Product Number SSQE48
Other Names SSQE48T07120-NABNG-Q,SSQE48T07120-NABNG-Q,179-2420,SSQE48T07120NABNG
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237574-SSQE48T07120-NABNG
Ultra Librarian 3D Model Ultra Librarian SSQE48T07120-NABNG CAD Model

Description

The SSQE48T07120-NABNG is an isolated module DC/DC converter from Bel Power Solutions.

  • Power Supply: 84W
  • Features: Remote on/off, OCP, OTP, OVP, and UVLO
  • Package: Tray
  • Standard Package: 100 units
  • Application: ITE (commercial)
  • Voltage - Input: 36-75V
  • Voltage Isolation: 2.25kV
  • Number of Outputs: Single
  • Voltage - Output: 12V
  • Current - Output: 7A
  • Efficiency: 92%
  • Mounting Type: Through hole mounting
  • Dimension: 1.30” L x 0.90” W x 0.37” H (33.0mm x 22.8mm x 9.5mm)
