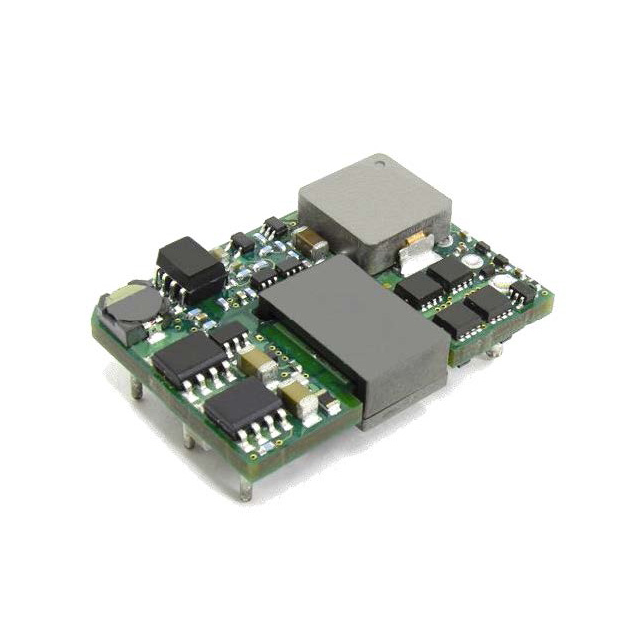

Same model may have multiple batches, images only for reference.

SSQE48T20033-NAANG

Name: SSQE48T20033-NAANG
Brand: Bel Power Solutions
SKU: 1237582
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SSQE48T20033-NAANG
Manufacturer	Bel Power Solutions
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 66W / Isolated Module DC DC Converter 1 Output 3.3V 20A 36V - 75V Input
Datasheet	SSQE48T20033-NAANG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Bel Power Solutions
Series	SSQE48
Package	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	3.3V
Current - Output (Max)	20A
Power (Watts)	66 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/16 Brick
Dimension	1.30" L x 0.90" W x 0.37" H (33.0mm x 22.8mm x 9.5mm)
Control Features	Enable, Active Low
Base Product Number	SSQE48
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237582-SSQE48T20033-NAANG
Ultra Librarian 3D Model	Ultra Librarian SSQE48T20033-NAANG CAD Model

Alternative Products

Description

The Bel Power Solutions isolated module is a part of the SSQE48 series and comes in an 8-DIP module, 1/16 brick package.

Application: Designed for use in commercial ITE applications
Power Output: 66W
Output Voltage: 3.3V
Current - Output (Max): 20A
Efficiency: 91%
Voltage Isolation: 2.25kV
Mounting Technology: Through-hole technology
Operating Temperature Range: -40°C ~ 85°C
Standard Package: 100 units
Features: Remote on/off, OCP, OTP, OVP, SCP, and UVLO
Application: Ideal for use in power supplies - board mount applications
