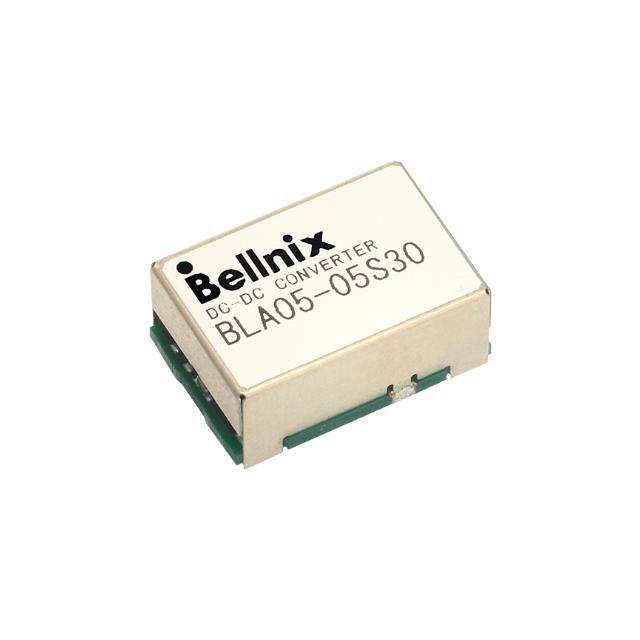

BLA05-05S30 Real Image
Same model may have multiple batches, images only for reference.

BLA05-05S30

Part No BLA05-05S30
Manufacturer Bellnix Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1.5W / Isolated Module DC DC Converter 1 Output 5V 300mA 3V - 9V Input
Datasheet
BLA05-05S30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Bellnix Co., Ltd.
Series BLA05 (1.5W)
Package Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 3V
Voltage - Input (Max) 9V
Voltage - Output 1 5V
Current - Output (Max) 300mA
Power (Watts) 1.5 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Adjustable Output, Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 80%
Mounting Type Surface Mount
Package / Case 7-SMD Module
Size / Dimension 0.80" L x 0.55" W x 0.38" H (20.3mm x 14.0mm x 9.7mm)
Base Product Number BLA05
Standard Package 60
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1352189-BLA05-05S30
Ultra Librarian 3D Model Ultra Librarian BLA05-05S30 CAD Model

Description

The BLA05-05S30 is a 1.5W isolated module DC-DC converter from the BLA05 series by Bellnix Co., Ltd.. Bold the product name and manufacturer

  • Features: Adjustable Output, Remote On/Off
  • Package: Bulk
  • Size / Dimension: 0.80" L x 0.55" W x 0.38" H (20.3mm x 14.0mm x 9.7mm)
  • Applications: ITE (Commercial)
  • Package: 60
  • Voltage - Isolation: 500V
  • Current - Output (Max): 300mA
  • Voltage - Input (Min): 3V
  • Voltage - Input (Max): 9V
  • Voltage - Output 1: 5V
  • Efficiency: 80%
  • Mounting Type: Surface Mount
  • Package / Case: 7-SMD Module
  • Operating Temperature: -40°C ~ 85°C (With Derating)
  • MSL: 1 (Unlimited)
  • HTSUS: 8504.40.9580
