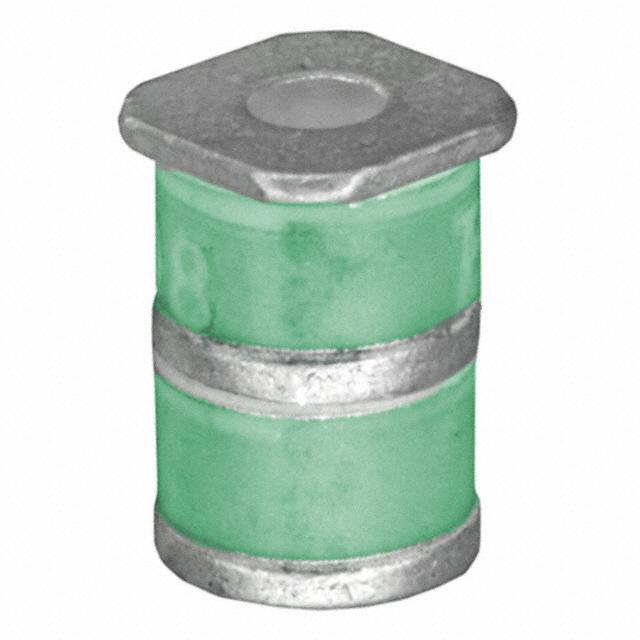

2036-09-SM-RPLF Bourns Inc.
Same model may have multiple batches, images only for reference.

2036-09-SM-RPLF

Part No 2036-09-SM-RPLF
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 90V 20% 10KA SURFACE MOUNT
Datasheet
2036-09-SM-RPLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Series Mini-TRIGARD 2036-SM
Packaging Reel package
Voltage - DC Spark Over (Nom) 90V
Impulse Discharge Current (8/20μs) 10000A (10kA)
Tolerance ±20%
Number of Poles 3
Fail Short No
Mounting SMD
Package 3-SMD Cylinder Square End
Win Source Part Number 761706-2036-09-SM-RPLF
Family Name 2036
Introduction Date February 18, 2009
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Safety, Industrial, Computers & Computer Peripherals, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian 2036-09-SM-RPLF CAD Model

Description

The Mini-TRIGARD 2036-SM series from Bourns Inc. offers a 3-SMD Cylinder Square End package with SMD mounting and ±20% tolerance.

  • Package: 3-SMD Cylinder Square End
  • Mounting: SMD
  • Tolerance: ±20%
  • Voltage - DC Spark Over (Nom): 90V
  • Impulse Discharge Current (8/20μs): 10000A (10kA)
  • Family: 2036
  • Category: Circuit Protection
  • Introduction Date: February 18, 2009
  • ECCN: EAR99
  • Country of Origin: Costa Rica
  • Estimated EOL Date: 2024
  • Supply and Demand Status: Limited
  • Applications: Safety, Industrial, Computers & Computer Peripherals, Communications & Networking
