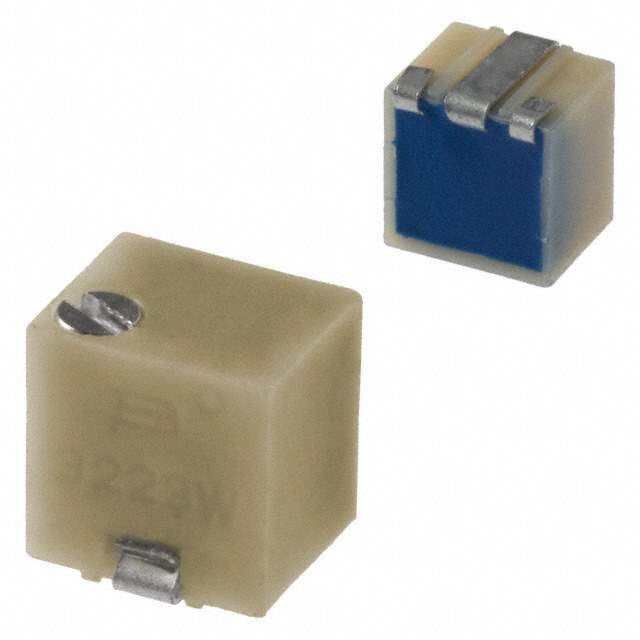

3223W-1-203E Real Image
Same model may have multiple batches, images only for reference.

3223W-1-203E

Part No 3223W-1-203E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 20K OHM 0.125W SMD
Datasheet
3223W-1-203E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3223 - Sealed
Packaging Reel package
Resistance (Ohms) 20k
Power (Watts) 0.125W, 1/8W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD
Termination Style J Lead
Dimension Rectangular - 0.154" x 0.125" Face x 0.164" H (3.90mm x 3.18mm x 4.16mm)
Win Source Part Number 763161-3223W-1-203E
Family Name 3223
Introduction Date April 28, 2003
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2025
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3223W-1-203E CAD Model

Description

The Bourns Inc. Trimpot 3223-Sealed 20k-ohm potentiometer is a medium-popularity variable resistor with limited supply and demand status. It has a Win Source Part Number of 763161-3223W-1-203E and is suitable for use in electronic devices that require a variable resistor component.

  • The potentiometer has an EAR99 ECCN classification: and is part of the Bourns Inc. product line.
